(02-008) - RECEIVER DRYER GROUP

Запчасти Case IH 3150 (02-008) - RECEIVER DRYER GROUP Cab Exterior

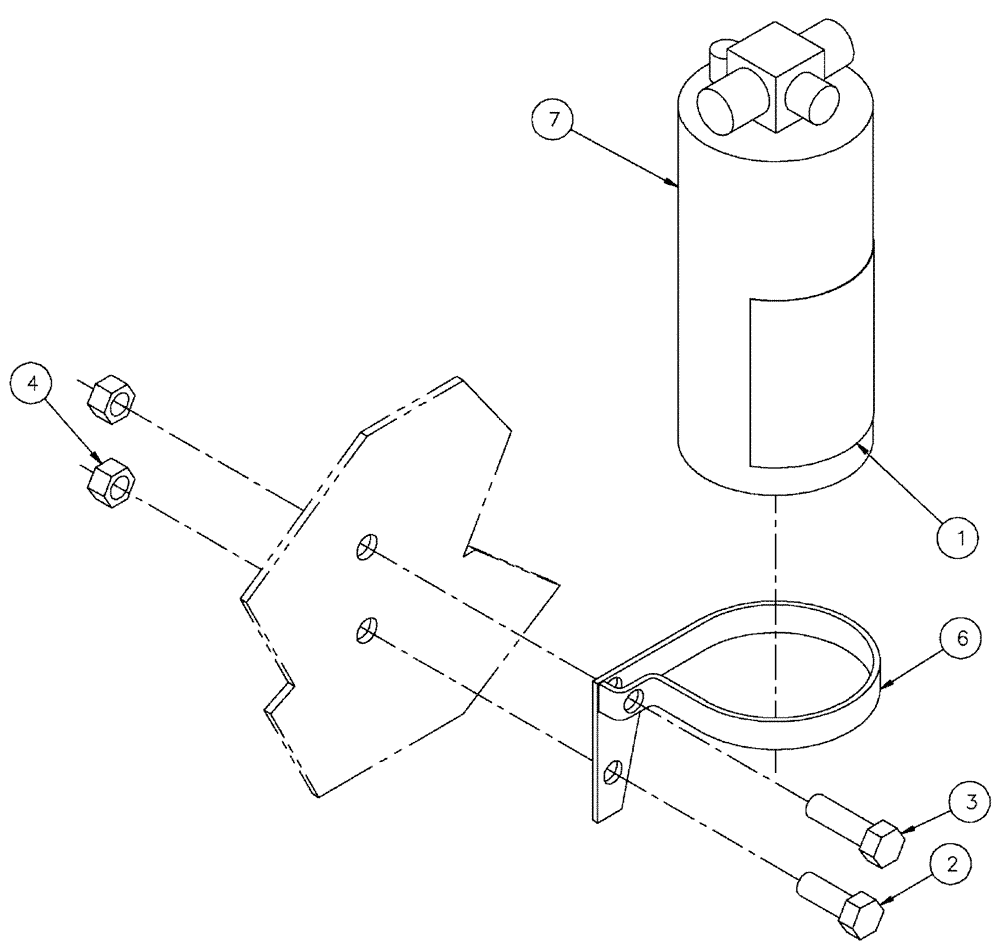

Схема запчастей Case IH 3150 - (02-008) - RECEIVER DRYER GROUP Cab Exterior
6
3
2
1
7
2
6
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN301704

DECAL

Charge With 134A Gas

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

4

88902

NUT,3/8"-16

2шт.

5

BN51142

CABLE TIE

CABLE STRAP TIE- .12-1.25 BUNDL

5шт.

6

BN67726

CLAMP

RECEIVER DRYER

1шт.

7

BN67797

RECEIVER-DRYER

1шт.
