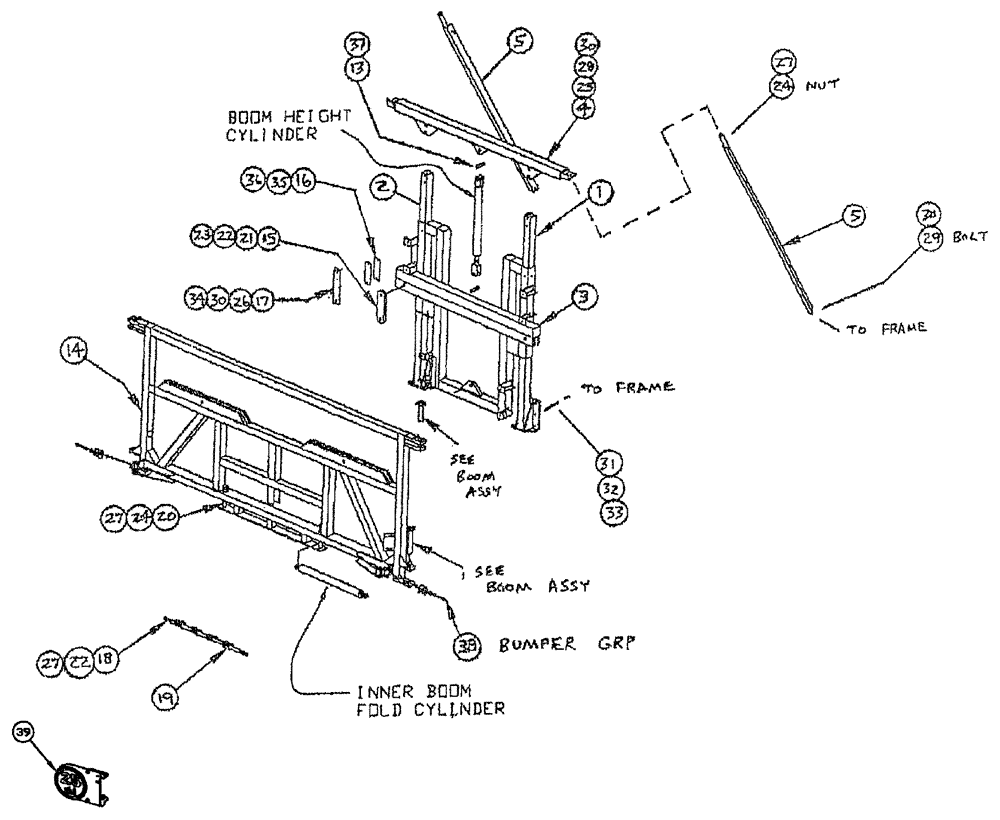

Запчасти Case IH 3150 (08-008) - CENTER SECTION GROUP, 90 (09) - BOOMS

1

BN67207

SLIDE

Weldment, Rail RH

1шт.

2

BN67206

SLIDE

Weldment, Rail LH

1шт.

1&2

BN68519

BRACKET, SUPPORTING

Boom Rack (30-70)

1шт.

3

BN67216

RACK

Weldment, Center Boom

1шт.

4

BN67214

HANGER

WLDMT, SLIDE RAIL

1шт.

6

BN303883

SUPPORT

WLDMT, MAST

1шт.

5

342261A1

SUPPORT

boom rail

2шт.

5

BN63745

SUPPORT

Rack (30-70)

2шт.

13

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

14

86986819

TUBE

Boom, Center Section

1шт.

15

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

16

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

17

87270296

BRACKET

Mount, Center Section

4шт.

18

BN21197

SHAFT

1" x 36"

1шт.

19

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

20

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

2шт.

21

BN50363

BOLT

1-14 X 6, HH, 5, Plate

4шт.

22

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

20шт.

23

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

24

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

4шт.

25

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

27

87553819

JAM NUT

1"-8 Hex, Jam

18шт.

28

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

16шт.

29

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

30

86992215

LOCK NUT,1/2"-13, GC

16шт.

31

87342969

BOLT

Hex, 5/8"-18 x 2 1/4", G8

12шт.

32

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 MM HDN DOR

2шт.

33

87343995

NUT

Hex, 5/8"-18, GB

12шт.

34

BN50595

WASHER,1/2", Stainless

40шт.

35

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

36

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

37

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

2шт.

38

BN314426

SEE FIG 08-009

1шт.

39

87545164

25 MPH, SEE FIG 10-006

1шт.

BN313099

MOUNTING PARTS

SMV GRP, SPRAYER, SEE FIG 10-007

1шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

12шт.

Associated Part of Center Section Group

1шт.

BN50146

WASHER,3/8", Stainless

4шт.

Associated Part of Center Section Group

1шт.

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

Associated Part of Center Section Group

1шт.

BN65609

SEAL

Star, 7/16 Ex Int

4шт.

Associated Part of Center Section Group

1шт.
