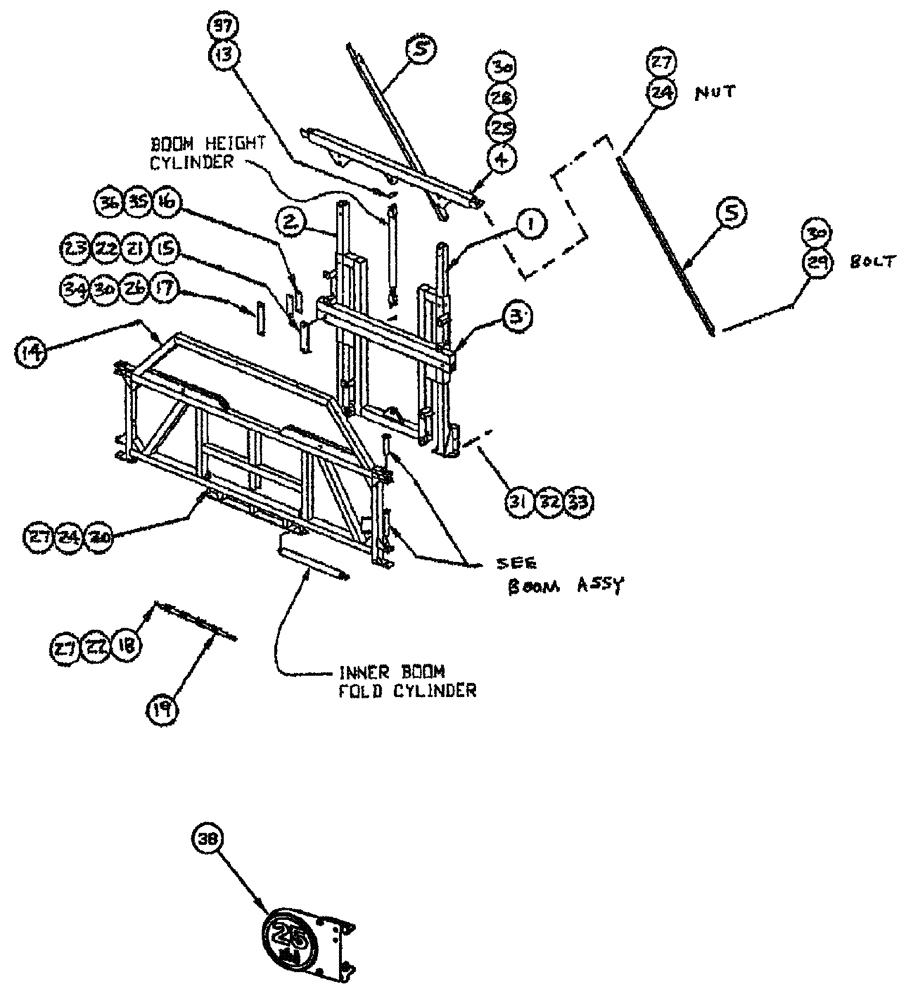

Запчасти Case IH 3150 (08-004) - CENTER SECTION GROUP, 75 (09) - BOOMS

1

BN67207

SLIDE

Rail RH

1шт.

2

BN67206

SLIDE

Rail LH

1шт.

1&2

BN68519

BRACKET, SUPPORTING

Boom Rack (30-70)

1шт.

3

BN67216

RACK

Center Boom

1шт.

4

BN67214

HANGER

Slide Rail

1шт.

5

342261A1

SUPPORT

boom rail

2шт.

5

BN63745

SUPPORT

Rack (30-70)

2шт.

6

BN303883

SUPPORT

MAST

1шт.

13

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

14

BN09256

BOOM

center section

1шт.

15

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

16

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

17

87270296

BRACKET

Mount, Center Section

4шт.

18

BN21197

SHAFT

1" x 36"

1шт.

19

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

*20

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

2шт.

21

414-1696

BOLT,Hex, 1" - 14 x 6", Gr 5

1-14 X 6 GRADE 5

4шт.

22

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

20шт.

23

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

24

86511609

NUT,1"-8, G8

4шт.

*25

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

*26

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

27

87343879

JAM NUT

Jam 1"-8, G5

18шт.

28

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

16шт.

29

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

4шт.

*30

87343666

NUT

Hex, 1/2"-13, G5

16шт.

31

87342969

BOLT

Hex, 5/8"-18 x 2 1/4", G8

12шт.

32

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5 x 34 x 5 MM HDN DOR

2шт.

33

87343995

NUT

Hex, 5/8"-18, GB

12шт.

34

BN50595

WASHER,1/2", Stainless

40шт.

35

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

36

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

37

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

38

87545164

SPRAY, 25 MPH, SEE FIG 10-006

1шт.

BN313099

MOUNTING PARTS

SMV GRP, SPRAYER, SEE FIG 10-007

1шт.

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

8шт.

Associated Part of Center Section Group

1шт.

BN50146

WASHER,3/8", Stainless

4шт.

Associated Part of Center Section Group

1шт.

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

Associated Part of Center Section Group

1шт.

BN65609

SEAL

Star, 7/16 Ex Int

4шт.

Associated Part of Center Section Group

1шт.
