Запчасти Case IH 3150 (08-002) - BOOM ASSEMBLY, R.H., 75 (09) - BOOMS

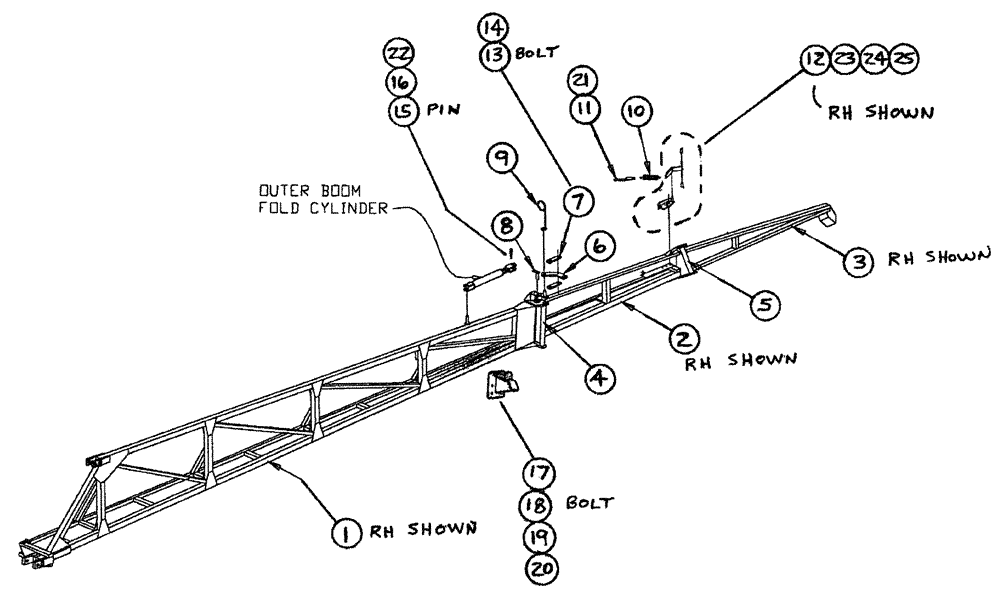

Схема запчастей Case IH 3150 - (08-002) - BOOM ASSEMBLY, R.H., 75 (09) - BOOMS
24
2
17
1
25
8
19
10
14
20
13
21
23
3
9
4
5
12
11
7
22
16
18
6
15

Артикул

Название

Примечание

Количество

1

BN24390A

BOOM

RH INNER 75'

1шт.

2

BN310958

BOOM

RH, fold

1шт.

3

BN310869

BOOM

Breakaway - RH

1шт.

4

BN09270

PIN

75' boom

1шт.

5

BN24487

PIN

75' boom

1шт.

6

BN21414A

BAR

3/4" HRS 4.62 x 9.06

1шт.

7

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

2шт.

8

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

1шт.

9

BN24490

BRACKET

hose guide

1шт.

10

BN24468

SPRING

tension 1.25" x 5.5"

1шт.

11

BN310970

TENSION SPRING

TAKEUP-WLDMT-SPRING OR DR

1шт.

11

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

11

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

12

BN27485

SERVICE KIT

RH Breakaway, 75' Boom

1шт.

88902

NUT,3/8"-16

4шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

BN24500

BRACKET

75' Boom Latch RH

1шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

BN50258

BOLT,3/8"-16 X 1.25", Stainless

1шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

86992215

LOCK NUT,1/2"-13, GC

1шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

BN24452

LATCH

Mount - Breakaway, 75' boom

1шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

2шт.

Parts of Hardware Package R.H. Breakaway, 75' Boom, P/N BN27485

1шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

14

280375

NUT,3/4"-10, GC

3шт.

15

86632567

HEADED PIN,30.14mm OD x 66.55mm L

1шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

16

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16 X 2"

4шт.

17

BN67185

CRADLE

boom

1шт.

18

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

BN50141

WASHER

5/16, FW, G5

4шт.

20

280736

NUT,5/16"-18, GC

7шт.

21

86992215

LOCK NUT,1/2"-13, GC

2шт.

22

87529238

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625 x 2 x 0.134 HTS DOR

6шт.

23

BN50258

BOLT,3/8"-16 X 1.25", Stainless

3шт.

24

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

25

88902

NUT,3/8"-16

3шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

Выбрано товаров: 41
