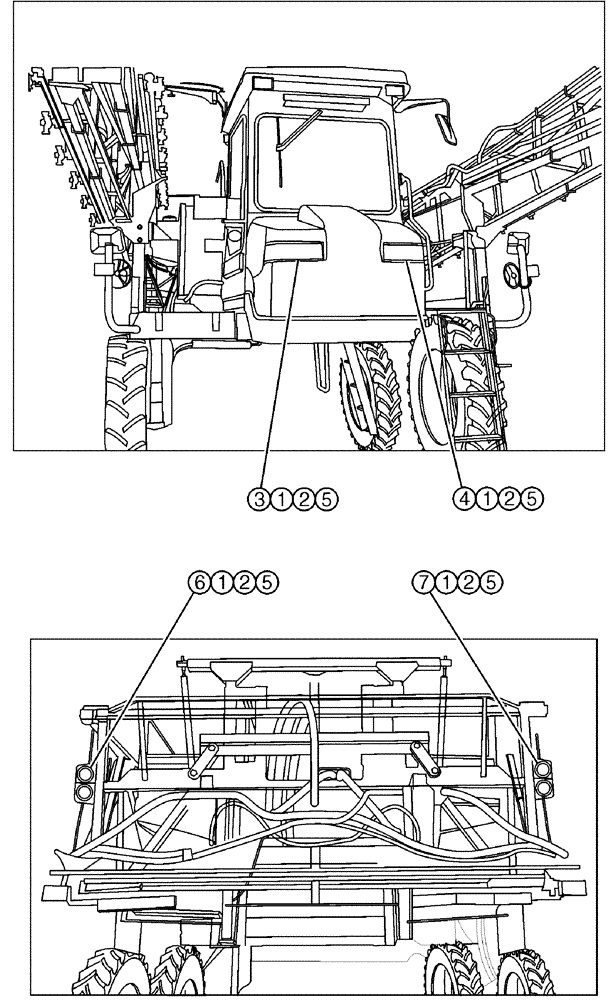

Запчасти Case IH 3150 (12-005) - LIGHT GROUP, ELECTRICAL (06) - ELECTRICAL

1

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

8шт.

2

353308

NUT,M6 x 1.0, Cl 8

8шт.

3

BN300054

HEADLIGHT

Assy, RH

1шт.

BN300052

HOUSING

Headlamp, RH

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, R.H., P/N BN300054

1шт.

4

BN300055

HEADLIGHT

Assembly, LH

1шт.

BN300055

HEADLIGHT

Assembly, LH

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300056

LAMP

Halogen, Inner, 50 Watt

2шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

BN300057

LAMP

Halogen, Outer, 37 Watt

1шт.

Parts of Headlamp Assy, L.H., P/N BN300055

1шт.

5

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

8шт.

6

BN307190

LIGHT

DUAL-W/BRAKE L.H.

1шт.

7

BN307191

LIGHT

DUAL-W/BRAKE R.H.

1шт.
