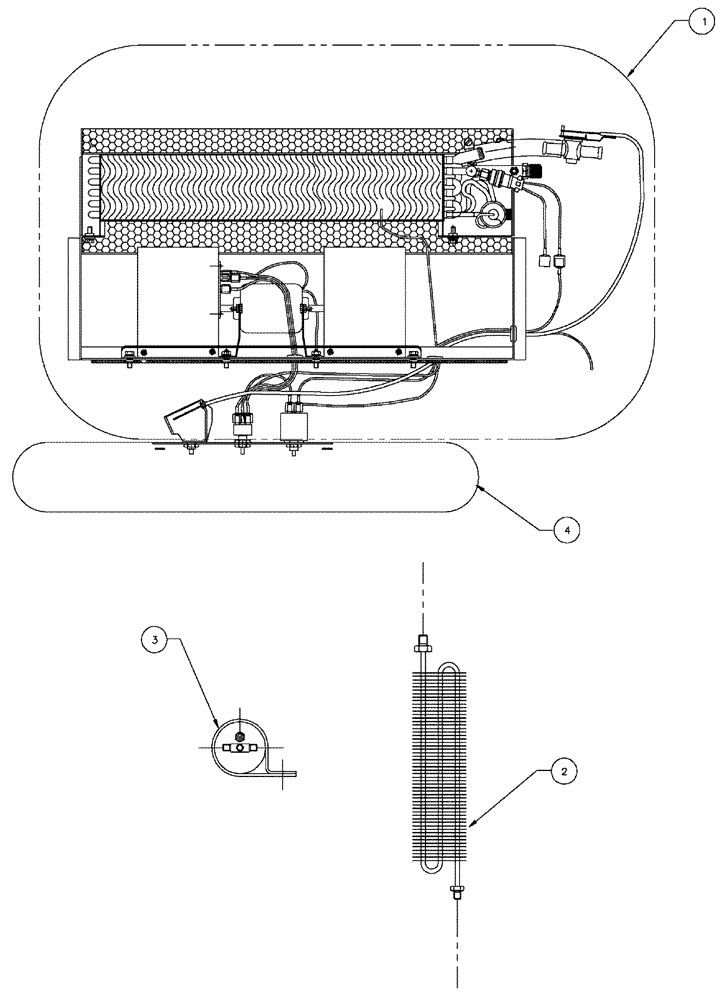

Запчасти Case IH 3150 (02-006) - A/C PACKAGE Cab Exterior

1

BN311013

HOUSING ASSY.

evaporator

1шт.

See Fig. 02-007

1шт.

2

BN67785

CONDENSER

Coil

1шт.

3

BN317005

RECEIVER DRYER GROUP

1шт.

See Fig. 02-008

1шт.

4

BN311014

PACKAGE

PARTS, LOUVER & MISC.

1шт.

See Fig. 02-009

1шт.

BN67795

HOSE

2шт.

BN67796

TUBE

POLY LOOM DRAIN

3шт.
