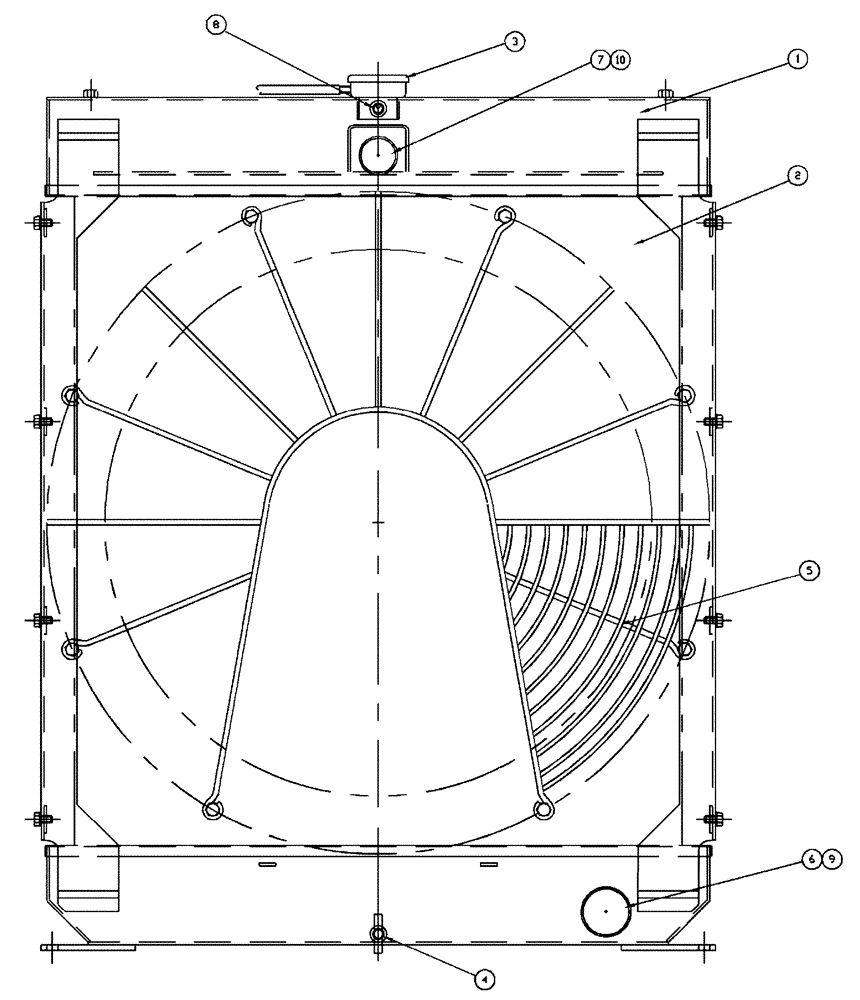

Запчасти Case IH 3150 (03-041) - RADIATOR PACKAGE (01) - ENGINE

1

BN315812

RADIATOR

GTI #2804E Assembly

1шт.

2

BN316884

SHROUD

radiator, 26" fan

1шт.

3

BN310678

RADIATOR CAP

15 PSI

1шт.

4

BN68738

HYDRAULIC VALVE

RADIATOR DRAIN W/90

1шт.

5

BN69653

GUARD

fan, radiator

1шт.

6

BN310616

RADIATOR HOSE,2.25" ID, SAE 20R4

Lower radiator

1шт.

7

BN310617

RADIATOR HOSE,1.75" ID x 17.88", SAE 20R4

Upper radiator

1шт.

8

BN311456

VENT

Pkg., Radiator

1шт.

BN53433

FITTING

HOSE BARB 1/4 MPT X 1/4 BARB

1шт.

Parts of Pkg, Vent (Radiator) P/N BN311456

1шт.

BN311451

FUEL HOSE,6.35 mm ID x 813.00 mm, SAE 30R7

fuel 1/4" ID x 32"

1шт.

Parts of Pkg, Vent (Radiator) P/N BN311456

1шт.

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

2шт.

Parts of Pkg, Vent (Radiator) P/N BN311456

1шт.

9

J918521

HOSE CLAMP,59mm - 83mm

(59-83MM)

2шт.

10

J922847

CLAMP

RAD HOSE (40-64 MM)

2шт.

ns

BN65181

RETAINER

RAD DRAIN HOSE

1шт.

ns

232-4246

NUT,3/8"-16, GC

4шт.

ns

86977691

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

4шт.

ns

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.
