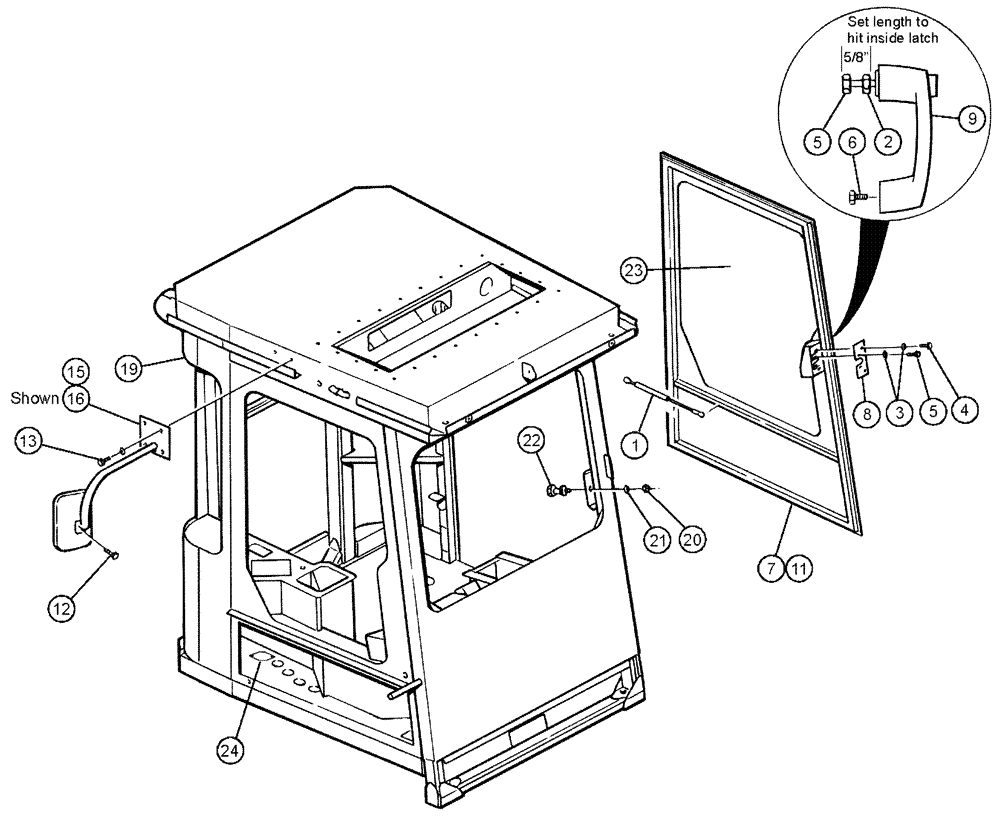

Запчасти Case IH 3150 (02-005) - DOOR, MIRRORS Cab Exterior

BN67932

DOOR ASSY.

ENTRY LH

1шт.

Includes Refs. 1 - 11

1шт.

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29400A

CYLINDER

Gas Charged

1шт.

Service Parts for Ref. 7

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Parts for Ref. 7

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Parts for Ref. 7

1шт.

2

280129

NUT,1/4"-20

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

5

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

Associated Part of Latch (Door) Two Rotor (Inside) P/N BN67951

1шт.

9

BN66106

HANDLE

(DOOR) OUTSIDE

1шт.

BN303475

DOOR LOCK KEY

SET OF 2

1шт.

Associated Part of Handle (Door) Outside, P/N BN66106

1шт.

11

84146228

RUBBER SEAL,4877mm L

Door

1шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

185773A1

MIRROR

2шт.

1530998C2

SUPPORT

holder

2шт.

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

15

BN314798

MOUNTING PARTS

MIRROR, LH

1шт.

16

BN314748

MOUNTING PARTS

MIRROR, RH

1шт.

Shown

1шт.

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

6шт.

Associated Part of Mirror Mnt Wldmnt, R.H., P/N BN314748

1шт.

19

BN65970

CAB

1шт.

20

280980

NUT,7/16"-14, GC

1шт.

21

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

22

BN66109

CATCH

STRIKER (DOOR)

1шт.

BN300873

BULB

Halogen, H3 12 volt

6шт.

Service Parts for Ref. 13

1шт.

24

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

BN69743

LOCK

BULKHEAD CONNECTOR

2шт.

Service Parts for Ref. 13

1шт.

BN16108

PLUG

Weatherpak Connector

22шт.

BN306057

CONTACT HOUSING

TERMINAL

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Service Parts for Ref. 13

1шт.

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Service Parts for Ref. 13

1шт.
