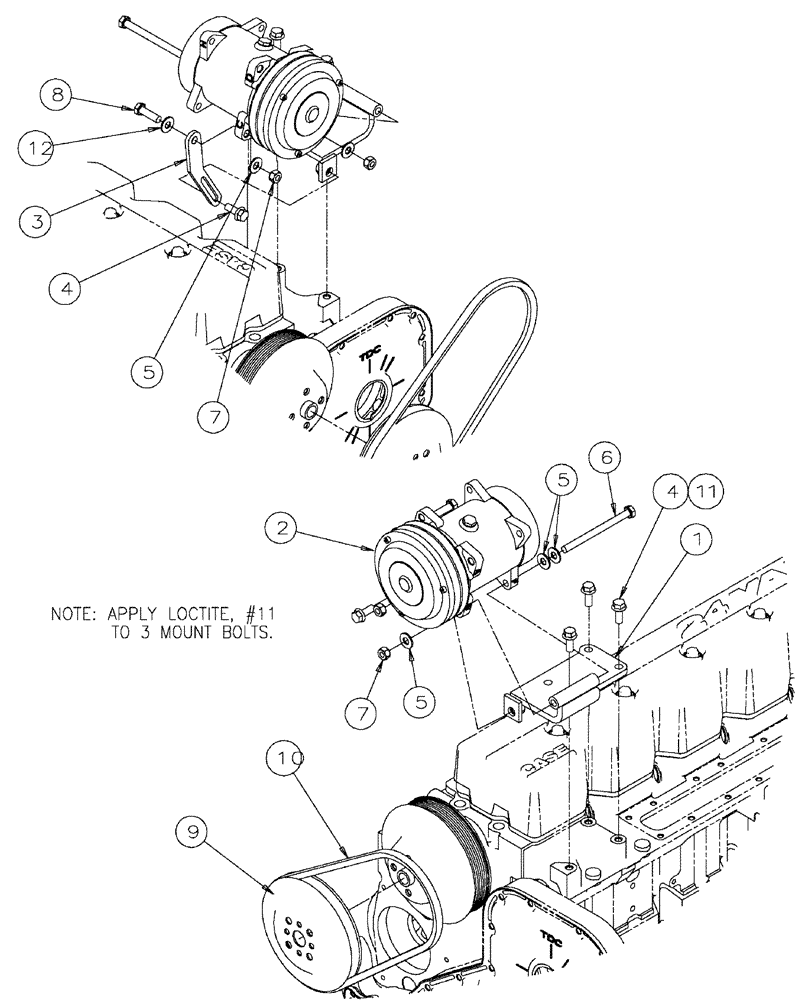

Запчасти Case IH 3150 (03-029) - A/C COMPRESSOR PACKAGE (01) - ENGINE

1

191951A1

SUPPORT

bracket, compressor

1шт.

2

86993462

AIRCOND. COMPRESSOR

12V Double Groove

1шт.

See Fig. 03-006

1шт.

2

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

3150 (6/04-5/09)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

2

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

3

BN315445

BRACE

A/C COMPRESSOR

1шт.

4

905-10025

BOLT,Hex Flg, M10 x 25mm

4шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

9

431716A1

PULLEY,147mm OD

A/C Drive

1шт.

10

84766C1

BELT,12.70 mm W x 996.00 mm L

Compressor Drive

1шт.

11

BN1243001

LOCTITE

243-31 Removable

1шт.

12

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

1шт.
