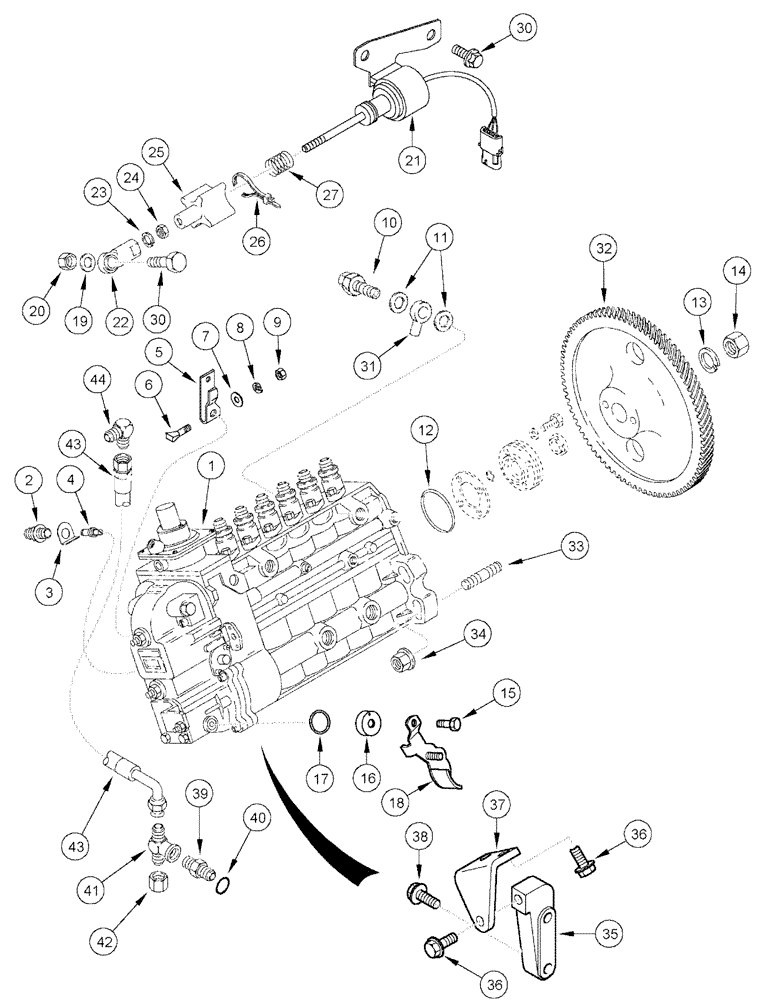

Запчасти Case IH 3150 (03-027) - FUEL INJECTION PUMP & DRIVE (01) - ENGINE

1

J929403

PUMP, FUEL INJECTION

PUMP, INJECTION NEW

1шт.

JR929403

REMAN-INJECTION PUMP

Remanufactured Injection Pump; For N.A. only

1шт.

JC929403

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

JC929601

CORE-INJECTION PUMP

RETURN NUMBER - USE THIS PART NUMBER TO RETURN PUMP CORE FOR CREDIT WHEN USING A REMANUFACTURED ASSEMBLY

1шт.

2

J912888

PLUG

TIMING

1шт.

3

J928981

LOCK WASHER

TIMING PLUG

1шт.

4

A77720

PIN

Timing

1шт.

5

87438537

LEVER

Throttle

1шт.

6

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

Throttle lever

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

8

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

9

829-1306

NUT,M6, Cl 10

1шт.

10

87409051

VALVE

OVERFLOW

1шт.

11

933967R1

LOCK WASHER,M14

2шт.

12

J935032

SEAL

1шт.

13

A77775

LOCK WASHER

Lock

1шт.

14

A41852

LOCK NUT

Hex, M14 x 1.5

1шт.

15

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

16

691292C1

RETAINER

Spring

1шт.

17

680187C1

O-RING,2.5mm Thk x 9mm ID

seal

1шт.

18

J802998

PACKAGE,SERVICE

PUMP SHUTOFF LEVER

1шт.

19

J934022

WASHER

FLAT, SPECIAL

1шт.

20

832-10406

NUT,M6 x 1, Cl 8

1шт.

21

87435487

SOLENOID VALVE

FUEL SHUTOFF, 12 VOLT

1шт.

22

87420849

END,1/4" - 28

Joint, Ball

1шт.

23

80682

LOCK WASHER,1/4"

1шт.

24

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

25

J925171

BOOT

PROTECTIVE, PLUNGER

1шт.

26

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

27

311100A1

SPRING

RETURN, PLUNGER

1шт.

30

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

HEX HEAD CAP, 16 - 1.5 X 16 MM

2шт.

31

J911447

CONNECTOR, ELEC

CONNECTOR BANJO, FUEL RETURN

1шт.

32

J934636

PINION

FUEL PUMP

1шт.

33

86991263

STUD,M10 x 1.5 x 55

4шт.

34

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

35

J863312

BRACE

FUEL PUMP

1шт.

36

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

3шт.

37

J863311

BRACE

FUEL PUMP

1шт.

38

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

39

J932321

UNION

NIPPLE - HEX, 1/8 PT X 10 - 1.6 MM STR THREAD

1шт.

40

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

41

J924346

TEE

OIL PRESSURE

1шт.

42

86511869

CAP,7/16" - 20 JIC

1шт.

43

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

44

A77512

ELBOW

Male, 90º

1шт.
