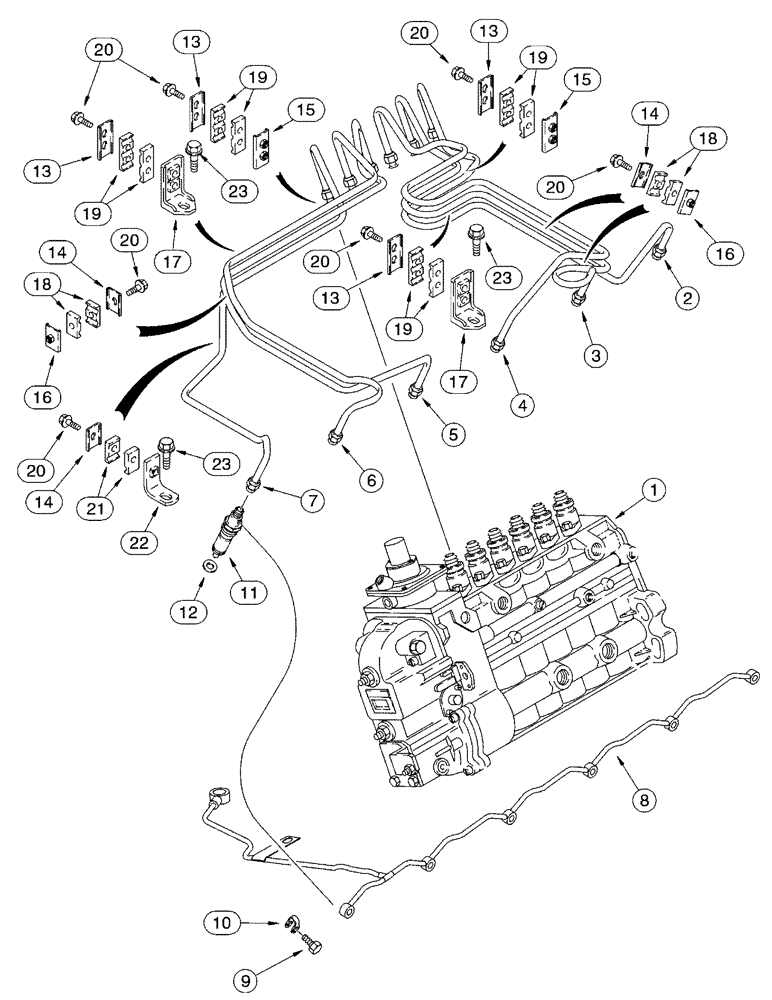

Запчасти Case IH 3150 (03-024) - FUEL INJECTION SYSTEM (01) - ENGINE

1

J929403

PUMP, FUEL INJECTION

PUMP, INJECTION NEW (SEE FIG 03-027 FOR PARTS)

1шт.

1

JR929403

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC929403

CORE-INJECTION PUMP

Return Number

1шт.

2

J928462

FUEL INJECTOR, NO. 1 CYLINDER

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

FUEL INJECTOR, NO. 2 CYLINDER

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

FUEL INJECTOR, NO. 3 CYLINDER

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

FUEL INJECTOR, NO. 4 CYLINDER

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

FUEL INJECTOR, NO. 5 CYLINDER

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

FUEL INJECTOR, NO. 6 CYLINDER

1шт.

8

J284476

MANIFOLD

FUEL

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

10

J903380

SEAL

Banjo connector

6шт.

11

J929490

NOZZLE INJECTION

FUEL (SEE FIG 03-028 FOR PARTS)

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

INJECTOR NOZZLE, 7 MM INJECTOR TIP

1шт.

13

J904519

SUPPORT

TUBE RETAINING

4шт.

14

CURJ904711

CLAMP

fuel tube

4шт.

15

J917716

BRACE

FUEL TUBE

2шт.

16

J917717

BRACE

FUEL TUBE

3шт.

17

J282942

BRACKET

FUEL TUBE

2шт.

18

J917746

CLAMP

FUEL TUBE

6шт.

19

J917747

CLAMP

FUEL TUBE

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

12шт.

21

J919359

CLAMP

VIBRATION

2шт.

22

J940840

BRACE

FUEL TUBE

1шт.

23

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
