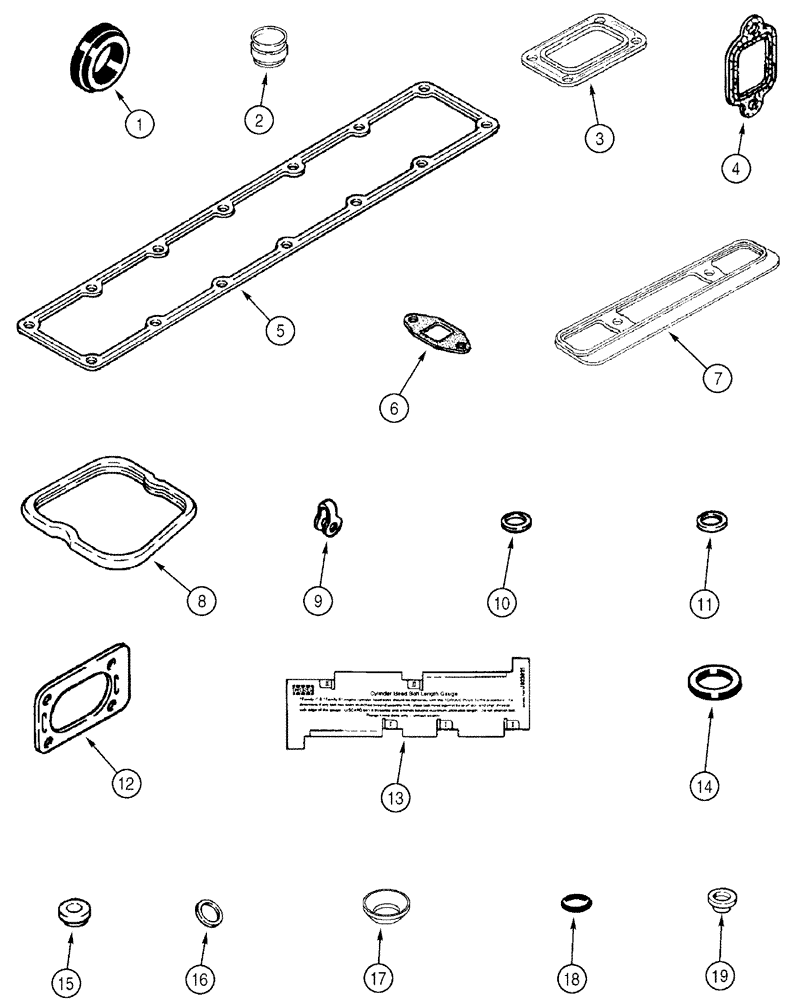

Запчасти Case IH 3150 (03-021) - GASKET KIT, VALVE GRIND (01) - ENGINE

87434407

GASKET

Gasket, Valve Grind

1шт.

When the Valve Grind Gasket Kit Is Ordered, Also Order the Required Cylinder Head Gasket

1шт.

See Fig. 03-014

1шт.

1

J923331

GASKET

THERMOSTAT HOUSING

1шт.

2

87433962

SEAL

Valve Stem

12шт.

3

J919369

GASKET,0.5mm Thk

TURBOCHARGER TO MANIFOLD

1шт.

4

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

5

J938152

MANIFOLD GASKET

MOUNTING, INTAKE MANIFOLD COVER

1шт.

6

J937706

GASKET,0.79mm Thk

TURBO OIL DRAIN TUBE

1шт.

7

J930426

GASKET

AIR CROSSOVER CONNECTION, NOT USED IN THIS APPLICATION

1шт.

8

J930906

GASKET

ROCKER ARM COVER

6шт.

9

J903380

SEAL

Banjo connector

6шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

INJECTOR NOZZLE, 7 MM INJECTOR TIP

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

injector body

6шт.

12

J914856

GASKET,1.02mm Thk

AIR CROSSOVER CONNECTION, AT AFTERCOOLER

1шт.

13

87404692

GAUGE

Cylinder Head, Bolt Length

1шт.

14

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

FILL CAP, AT VALVE COVER

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

NOISE, AT VALVE COVER

6шт.

16

J900808

SEAL

INJECTOR NOZZLE, 9 MM INJECTOR TIP, IF USED

6шт.

17

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

18

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

COVER BOLT, AT VALVE COVER, IF USED

6шт.

19

87433959

RETAINER

VALVE SPRING

12шт.
