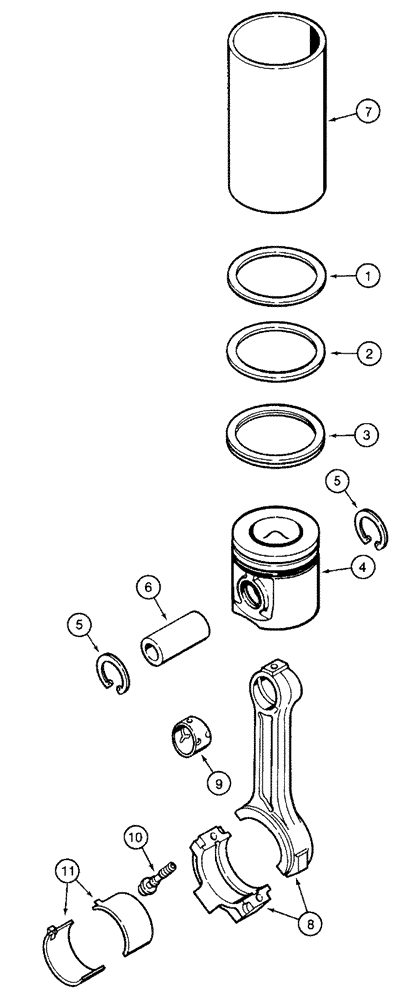

Запчасти Case IH 3150 (03-020) - PISTON & CONNECTING ROD (01) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

STANDARD

6шт.

A77727

PISTON RING SET

STANDARD

1шт.

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, STANDARD

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

J802764

PISTON & RINGS KIT

0.5 MM OVERSIZE

6шт.

A77728

PISTON RING SET

0.5 MM OVERSIZE

1шт.

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, 0.5 MM OVERSIZE

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

J802765

PISTON & RINGS KIT

1.00 MM OVERSIZE

6шт.

A77729

PISTON RING SET

1.00 MM OVERSIZE

1шт.

1

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, TOP

1шт.

2

NSS

NOT SOLD SEPARAT

RING - COMPRESSION, MIDDLE

1шт.

3

NSS

NOT SOLD SEPARAT

RING - OIL, BOTTOM

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - CYLINDER, 1.00 MM OVERSIZE

1шт.

5

J920691

SPECIAL RING

SNAP

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

PISTON

6шт.

7

J904166

SLEEVE

LINER - PISTON, USED ONLY IN ENGINE BLOCK REPAIR, WHEN LINER IS INSTALLED, USE J802757 PISTON KIT

1шт.

8

84145405

ROD, CONNECTING

NEW

6шт.

8

84145405R

REMAN-CONNECTING ROD

6шт.

8

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

CONNECTING ROD

1шт.

10

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

HEX, SPECIAL

2шт.

11

87425525

CRANKSHAFT BEARING

BEARING, UPPER AND LOWER SET, STANDARD

6шт.

11

87425526

CRANKSHAFT BEARING

BEARING, UPPER AND LOWER SET, 0.25 MM OVERSIZE

6шт.

11

87425527

BEARING SET

BEARING, UPPER AND LOWER SET, 0.50 MM OVERSIZE

6шт.

11

87425528

CRANKSHAFT BEARING

BEARING, UPPER AND LOWER SET, 0.75 MM OVERSIZE

6шт.

11

87425529

CRANKSHAFT BEARING

BEARING, UPPER AND LOWER SET, 1.00 MM OVERSIZE

6шт.
