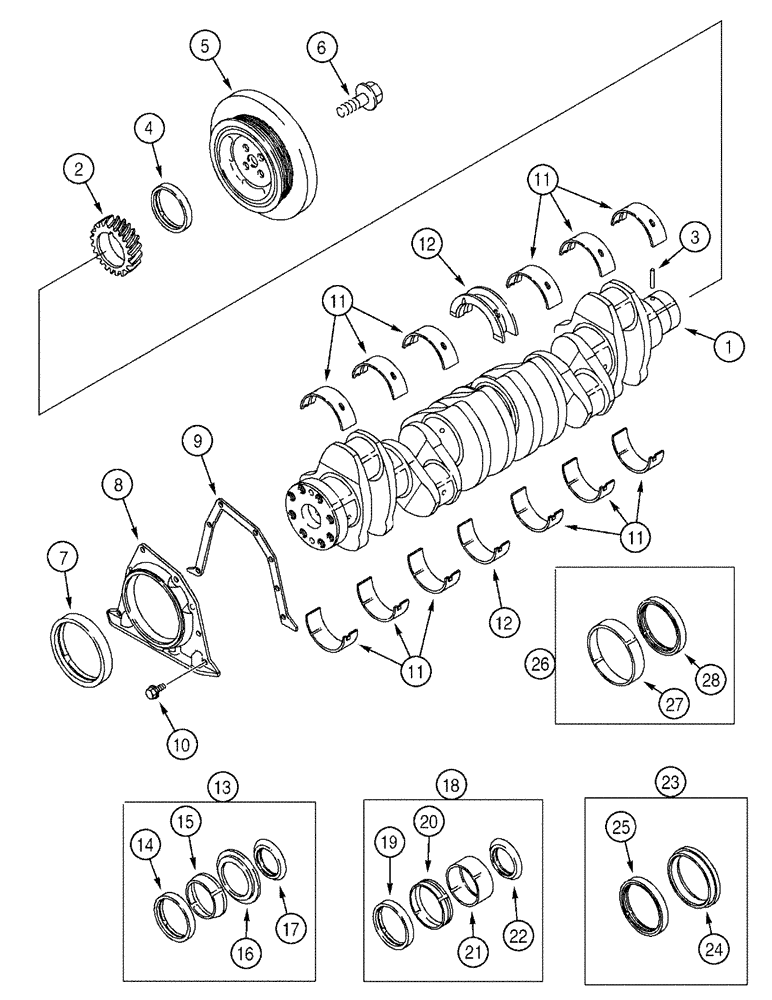

Запчасти Case IH 3150 (03-018) - CRANKSHAFT (01) - ENGINE

JR908032

REMAN-CRANKSHAFT

ENGINE, NORTH AMERICA ONLY

1шт.

JC908032

CORE-CRANKSHAFT

RETURN NUMBER - USE THIS PART NUMBER TO RETURN CORE CRANK SHAFT FOR CREDIT WHEN USING A REMANUFACTURED ASSEMBLY

1шт.

1

J908032

CRANKSHAFT

ENGINE

1шт.

2

J929027

PINION

CRANKSHAFT

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

DOWEL

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - OIL, FRONT (ORDER REF. 13, A77889 FRONT OIL SEAL KIT)

1шт.

5

J958258

DAMPER

PULLEY - CRANKSHAFT VIBRATION

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

HEX FLANGE, SPECIAL, 12 - 1.25 X 36 MM

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - OIL, REAR (ORDER REF. 23, J934486 REAR OIL SEAL KIT)

1шт.

8

J936904

REAR COVER

RETAINER - SEAL

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

Hex Flange, M6 x 16 G10.9

6шт.

10

J938159

GASKET

REAR COVER RETAINER

1шт.

11

A77405

CRANKSHAFT BEARING

Main, Set of 2, Standard

6шт.

11

A77472

BEARING SET

Main, Upper and Lower Set, 0.25 mm Undersize

6шт.

11

A77474

BEARING SET

Main, Upper and Lower Set, 0.5 mm Undersize

6шт.

11

A77476

BEARING SET

Main, Upper and Lower Set, 0.75 mm Undersize

6шт.

11

A77478

BEARING SET

Main, Upper and Lower Set, 1.0 mm Undersize

6шт.

12

A77896

BEARING SET

Main, Set of Two, Standard

1шт.

12

A77473

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.25 mm Undersize

1шт.

12

A77475

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.5 mm Undersize

1шт.

12

A77477

THRUST BEARING

Main Thrust, Upper and Lower Set, 0.75 mm Undersize

1шт.

12

A77479

THRUST BEARING

Main, Upper and Lower Set, 1.0 mm Undersize

1шт.

12

A77841

THRUST BEARING

Main, Upper and Lower Set, 0.50 mm Undersize, 0.50 mm Oversize Thrust

1шт.

12

A77840

THRUST BEARING

Main, Upper and Lower Set, 1.00 mm Undersize, 1.00 mm Oversize Thrust

1шт.

13

A77889

SEAL PACKAGE

Oil, Crankshaft, Front

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - OIL, FRONT

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - INSTALLATION

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - INSTALLATION

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD - DUST

1шт.

18

A77890

SEAL PACKAGE

Oil, Crankshaft Front, Includes Wear Sleeve

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - OIL, FRONT

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - WEAR

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - INSTALLATION

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - DUST

1шт.

23

J934486

SERVICE KIT

OIL SEAL, CRANKSHAFT REAR

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL - INSTALLATION

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - OIL, REAR

1шт.

26

A77810

SERVICE KIT

Wear Sleeve, Crankshaft Rear

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - WEAR

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - OIL, REAR

1шт.
