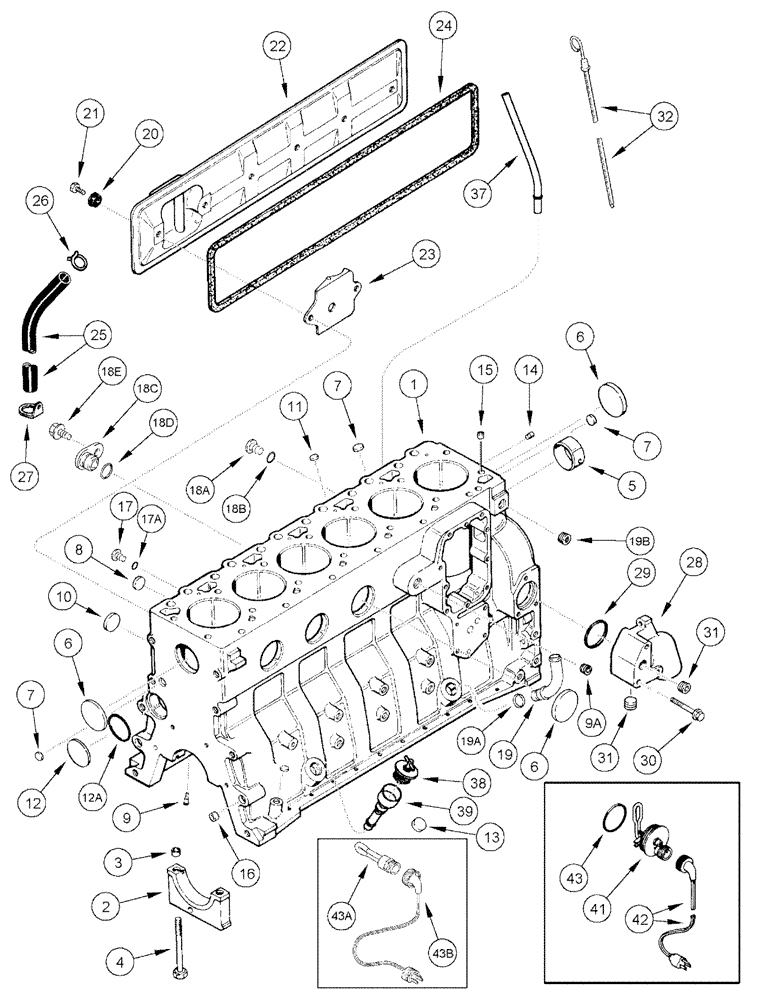

Запчасти Case IH 3150 (03-017) - CYLINDER BLOCK (01) - ENGINE

0

321943A7

COMPLETE, 6TA-590, INCLUDES ALL PARTS EXCEPT STARTER, ALTERNATOR, FAN, AIR CLEANER, MUFFLER AND EXHAUST PIPE (FOR SERVICE ORDER BASIC ENGINE ASSEMBLY BELOW)

1шт.

0

246148A2

BASIC ENGINE

6T/6TA-590

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbo charger and belt t

1шт.

0

246148A2R

REMAN-BASIC ENGINE

6T/6TA-590

1шт.

0

6-590-LBC

CORE-ENGINE

Basic 6-590 Emission

1шт.

North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

0

J933645

SKELETON ENGINE

BLOCK ASSEMBLY- SHORT, NEW, INCLUDES STRIPPED BLOCK, PISTONS, CONNECTING RODS AND BEARINGS, CRANKSHAFT AND BEARINGS.

1шт.

Order P/N J933220 Hardware Kit When Ordering P/N J933645 Short Block Assembly or P/N J935936 Stripped Block

1шт.

0

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

Order JR933183 remanufactured block assembly and J933220 hardware kit

1шт.

Component parts shown on this figure do not apply to the remanufactured assembly, no longer available

1шт.

0

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

Return number - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

J935936

CYLINDER BLOCK

STRIPPED, ENGINE

1шт.

Order P/N J933220 Hardware Kit When Ordering P/N J933645 Short Block Assembly or P/N J935936 Stripped Block

1шт.

2

87579994

BEARING ASSY

Assembly, Main Bearing

5шт.

3

J900068

BEARING WASHER

RING-DOWEL, 18MMOD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

Main bearing cap, special

1шт.

5

REF

INSTRUCTION

BUSHING - CAMSHAFT, FRONT (SEE FIG 03-016)

1шт.

6

A77782

PLUG

Expansion, 58 mm od

5шт.

7

J900956

PLUG

EXPANSION, 18 MM OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

4шт.

8a

J933220

PACKAGE,SERVICE

BLOCK HARDWARE

1шт.

Order P/N J933220 Hardware Kit When Ordering P/N J933645 Short Block Assembly or P/N J935936 Stripped Block

1шт.

9

J937214

NOZZLE CAP

PISTON COOLING

6шт.

9a

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

10

J900958

PLUG

EXPANSION, 32 MM OD

1шт.

11

J900955

PLUG

EXPANSION, 10 MM OD

3шт.

12

172599

PLUG,Exp, 2 3/8"

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm id

1шт.

13

J920706

PLUG

EXPANSION, 22 MM OD

3шт.

14

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

15

J902343

DOWEL

ring, 16 mm od

2шт.

16

J900068

BEARING WASHER

RING-DOWEL, 18MMOD

2шт.

17

J678923

PLUG,M10 x 1

ASSY, THREADED, 10 MM

3шт.

17a

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

444704

PLUG,Hex Soc, 1/2"-14

1шт.

18a

J678921

PLUG

HEX SOCKET, 14 MM

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

18c

J932296

PLUG

TIMING SENSOR HOLE

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

SEALING

1шт.

18e

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

19

J931973

TUBE,0.875" OD

TURBOCHARGER OIL DRAIN

1шт.

19a

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

19b

86625118

DRAIN PLUG,1/2" - 14 NPT

1шт.

20

J900267

SEAL

COVER BOLT

6шт.

21

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

22

J990730

COVER

TAPPET

1шт.

23

J907586

BAFFLE

TAPPET COVER

1шт.

24

J284623

GASKET

TAPPET COVER

1шт.

25

J918614

TUBE,435.00 mm

635 MM (25 INCH) LONG

1шт.

26

J904230

CLAMP,25.4mm

SPRING, HOSE

1шт.

27

J928989

CLIP

RETAINING

1шт.

28

J934878

MANIFOLD

WATER INLET

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - 50 MM ID

1шт.

30

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

31

444704

PLUG,Hex Soc, 1/2"-14

2шт.

32

J938059

DIPSTICK

ENGINE OIL

1шт.

37

J935617

TUBE,9.52 mm OD x 139, 63.7 mm L

DIPSTICK

1шт.

38

A77424

FILLER CAP

Filler Cap

1шт.

39

J935619

TUBE,22.42-30.43 mm OD x 190 mm L

OIL FILLER

1шт.

39a

196803A1

KIT

coolant heating, 120V, 750W

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - ENGINE HEATER, 120 VOLT

1шт.

42

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

43

J910517

O-RING

HEATER SEALING, 120 VOLT

1шт.

43a

124340A1

KIT

engine block heater, 240 volt

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - ENGINE HEATER, 240 VOLT

1шт.

42

J905114

ELECTRIC CABLE

ENGINE BLOCK HEATER, 6 FOOT, 240 VOLT

1шт.

43

J910517

O-RING

HEATER SEALING, 240 VOLT

1шт.

43a

309651A1

KIT

block heater, 120V, 750W

1шт.

43b

NSS

NOT SOLD SEPARAT

ELEMENT- ENGINE HEATER, 120 VOLT

1шт.

Install Ref. 43A Element in Place of Ref. 9A, A77505 Plug

1шт.

43c

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

43d

309652A1

KIT

ENGINE BLOCK HEATER, 240 VOLT

1шт.

43e

NSS

NOT SOLD SEPARAT

ELEMENT - ENGINE HEATER, 240 VOLT

1шт.

Install Ref. 43A Element in Place of Ref. 9A, A77505 Plug

1шт.

43f

J905114

ELECTRIC CABLE

ENGINE BLOCK HEATER, 6 FOOT, 240 VOLT

1шт.

43g

87425542

KIT

ENGINE OVERHAUL

1шт.

Not Shown

1шт.

44

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

STANDARD

6шт.

See Fig. 03-020

1шт.

45

87425525

CRANKSHAFT BEARING

Kit - Upper and Lower Set, Standard

6шт.

See Fig. 03-020

1шт.

46

A77405

CRANKSHAFT BEARING

Main, Set of 2, Standard

6шт.

See Fig. 03-018

1шт.

47

A77896

BEARING SET

Main, Set of Two, Standard

1шт.

See Fig. 03-018

1шт.

48

87434407

GASKET

Gasket, Valve Grind

1шт.

See Fig. 03-021

1шт.

49

J283335

GASKET,2.32mm Thk

HEAD, STANDARD

1шт.

See Fig. 03-014-02

1шт.

50

A77979

GASKET KIT

Oil Pan

1шт.

See Fig. 03-013

1шт.

51

J934047

PIN,40mm OD x 82.68mm L

PISTON

6шт.

See Fig. 03-020

1шт.
