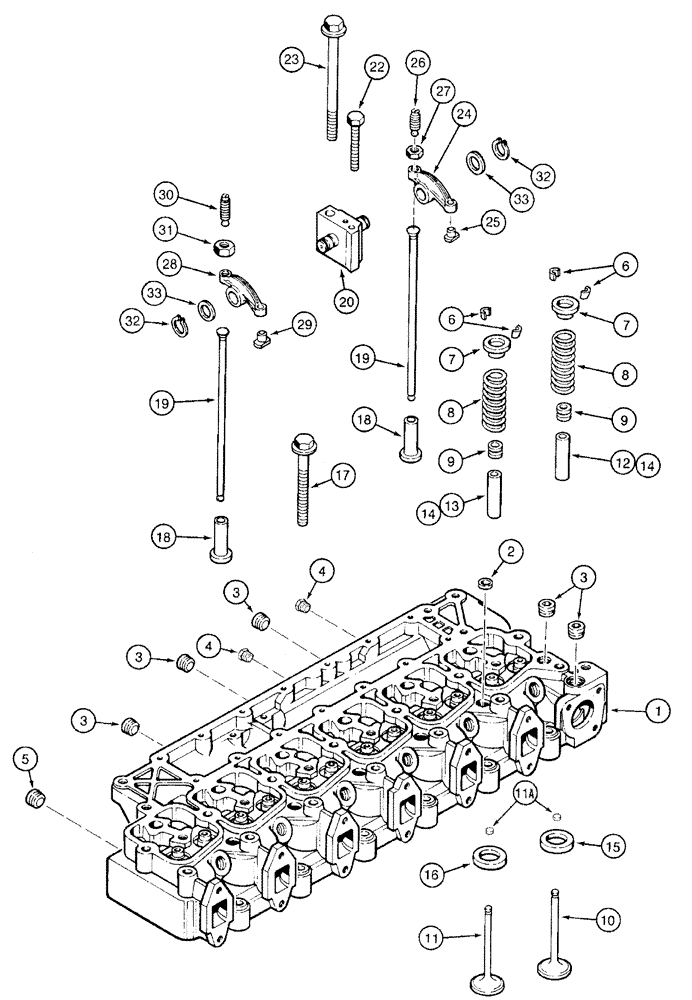

Запчасти Case IH 3150 (03-015) - CYLINDER HEAD & VALVE MECHANISM (01) - ENGINE

87430144

HEAD (CYLINDER)

WITH VALVES

1шт.

Component parts shown on this figure do not apply to the remanufactured assembly

1шт.

87430145

REMAN-CYLINDER HEAD

With Valves

1шт.

87430146

CORE-CYLINDER HEAD

Return Part Number

1шт.

Return number - use this part number to return head core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - CYLINDER, WITHOUT VALVES

1шт.

2

A77782

PLUG

Expansion, 58 mm od

5шт.

3

444704

PLUG,Hex Soc, 1/2"-14

5шт.

One Removed to Install Temperature Sending Unit

1шт.

4

88071

PLUG

Hex Hd, 1/8"-27 NPTF

2шт.

5

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

6

J900250

SCREW

KEEPER - VALVE

24шт.

7

87433959

RETAINER

VALVE SPRING

12шт.

8

J926700

VALVE SPRING

12шт.

9

87433962

SEAL

Valve Stem

12шт.

10

J920867

VALVE

INTAKE

6шт.

11

J920868

VALVE

EXHAUST

6шт.

11a

J910412

WEAR PAD

SERVICE REPAIR ONLY FOR VALVE STEM TIP

12шт.

12

J904408

GUIDE

VALVE, INTAKE, SERVICE REPAIR ONLY, 14 MM OD

6шт.

These Parts Are Semi-finished Valve Guides

1шт.

13

J904409

GUIDE

VALVE, EXHAUST, SERVICE REPAIR ONLY, 14 MM OD

6шт.

These Parts Are Semi-finished Valve Guides

1шт.

14

J906206

GUIDE

VALVE, INTAKE AND EXHAUST, SERVICE REPAIR ONLY, 11 MM OD

12шт.

These Parts Are Semi-finished Valve Guides

1шт.

15

J906854

SEAT, VALVE

INSERT, INTAKE, SERVICE REPAIR ONLY

6шт.

16

J904105

SEAT, VALVE

INSERT, EXHAUST, SERVICE REPAIR ONLY

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm

14шт.

18

J931623

TAPPET

VALVE, PUSH ROD

12шт.

19

J284377

PUSH ROD

ROCKER ARM

12шт.

20

J922488

SUPPORT

AND SHAFT ASSEMBLY - ROCKER ARM

6шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

6шт.

24

J910811

ROCKER

ARM ASSEMBLY -INTAKE

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT-ROCKER ARM

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

27

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

28

J910810

ROCKER

ARM ASSEMBLY - EXHAUST

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT-ROCKER ARM

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

31

A77902

NUT

Special, 3/8"-24, Heavy, Type 8

1шт.

32

J900242

SNAP RING

RETAINING, ROCKER ARM

12шт.

33

J900245

WASHER

THRUST, ROCKER ARM

12шт.
