(03-014[02]) - THERMOSTAT, HOUSING AND ALTERNATOR MOUNTING

Запчасти Case IH 3150 (03-014[02]) - THERMOSTAT, HOUSING AND ALTERNATOR MOUNTING (01) - ENGINE

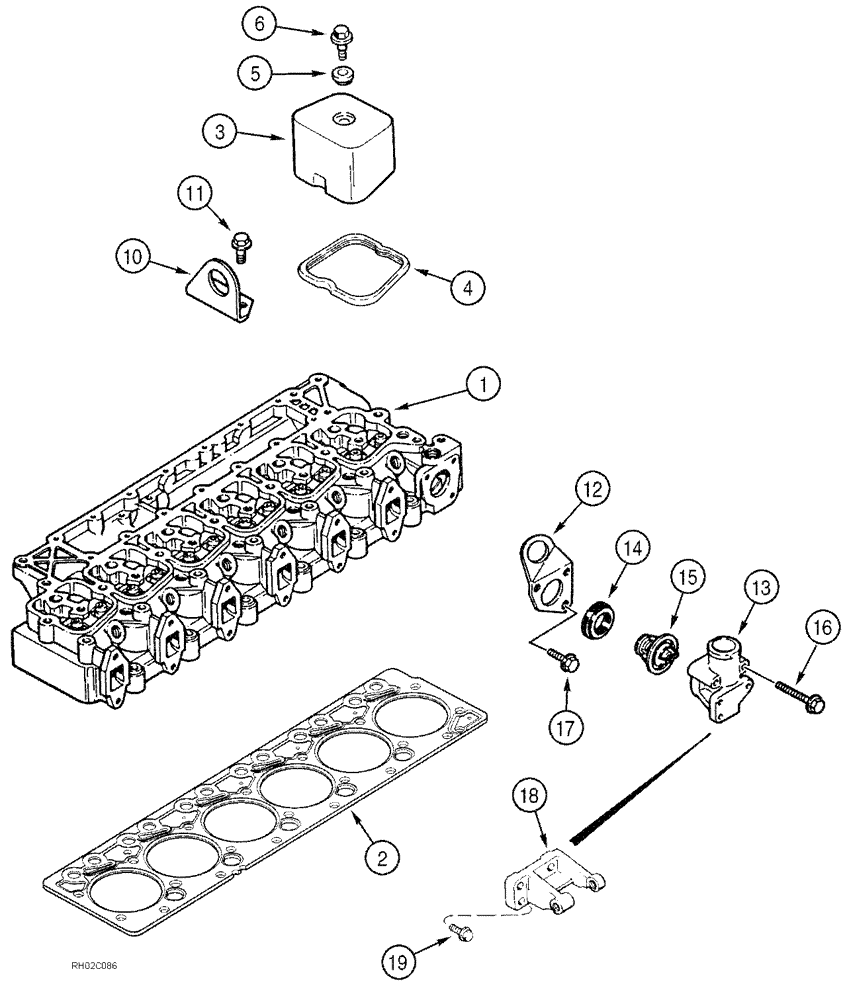

Схема запчастей Case IH 3150 - (03-014[02]) - THERMOSTAT, HOUSING AND ALTERNATOR MOUNTING (01) - ENGINE
15
18
3
13
4
6
1
5
12
16
2
17
10
11
14
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

J903757

BRACKET

LIFTING, FRONT

1шт.

13

J285102

HOUSING

THERMOSTAT

1шт.

A77736

THERMOSTAT

Kit, Coolant

1шт.

14

J923331

GASKET

THERMOSTAT HOUSING

1шт.

15

NSS

NOT SOLD SEPARAT

THERMOSTAT - COOLANT

1шт.

16

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

17

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

18

J287096

SUPPORT

ALTERNATOR MOUNTING

1шт.

18a

838-5310

LOCK PIN,M3 x 10, Slotted

2шт.

Not Shown

1шт.

19

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.
