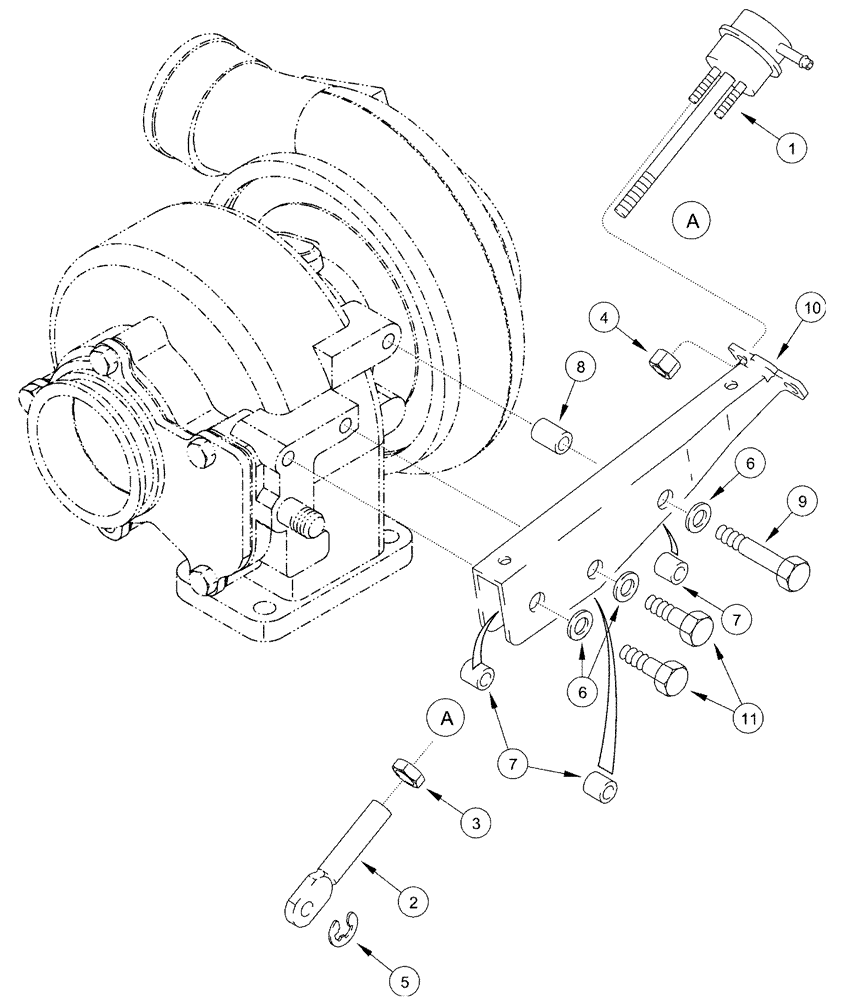

Запчасти Case IH 3150 (03-011) - WASTEGATE ACTUATOR (01) - ENGINE

J802697

KIT

turbocharger with gaskets

1шт.

JR802697

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

JC536327

CORE-TURBOCHARGER

Return Number

1шт.

Also includes Refs. 2 - 23 on Fig. 03-010

1шт.

1

J593678

ACTUATOR

TURBO WASTEGATE

1шт.

1

J593678R

REMAN-SOLENOID

Cummins - ACTUATOR - Wastegate

1шт.

1

J593678C

CORE-SOLENOID

Return Number, ACTUATOR

1шт.

2

J528177

LINK

ADJUSTING

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J592050

NUT

2шт.

5

J528221

CIRCLIP

RETAINING

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

MOUNTING, SHORT

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

MOUNTING, LONG

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

BRACKET - WASTE GATE ACTUATOR

1шт.

11

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
