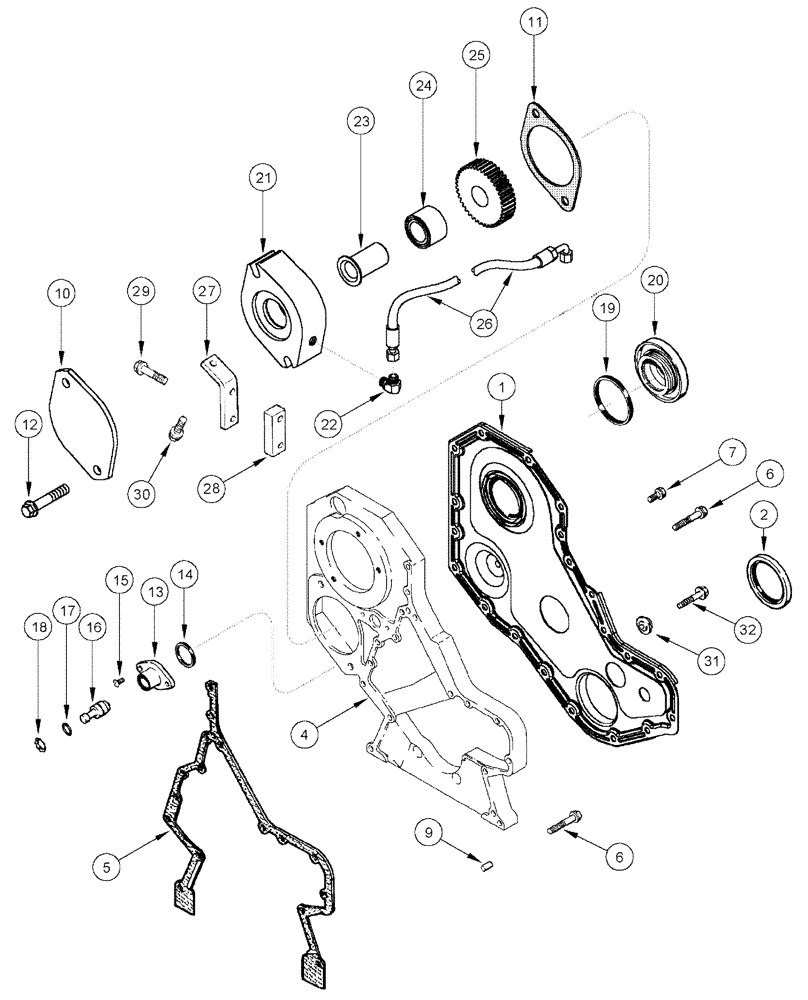

Запчасти Case IH 3150 (03-008) - FRONT GEAR COVER (01) - ENGINE

1

J935583

COVER

GEAR, FRONT

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - OIL, FRONT (ORDER SEAL KIT A77889 OR A77890 ON FIG 03-018)

1шт.

4

87423035

COVER

TIMING GEAR

1шт.

5

J938156

GASKET,0.79mm Thk

GEAR HOUSING

2шт.

6

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9, FRONT GEAR COVER TO TIMING-GEAR HOUSING TO BLOCK, AND HOUSING TO BLOCK

10шт.

7

J924962

FLANGE BOLT

HEX FLANGE, SPECIAL, 8 - 1.25 X 16 MM, FRONT GEAR COVER TO TIMING- GEAR HOUSING, AND HOUSING TO BLOCK

16шт.

9

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

10

J914868

COVER

plate, access, flat

1шт.

11

J938655

GASKET,1.27mm Thk

COVER

2шт.

12

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

2шт.

13

J919683

HOUSING

TIMING PIN

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Timing Pin Housing

1шт.

15

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

16

J903924

PIN,18.87mm OD x 55mm L

TIMING

1шт.

17

J913994

O-RING

SEALING

1шт.

18

100-2587

SNAP RING,0.875", Int, #87

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

FRONT ACCESS COVER

1шт.

20

J903463

PLUG,M63 x 5

front access

1шт.

J939961

DRIVE ASSY.

HYDRAULIC PUMP

1шт.

21

J939957

ADAPTER

HYDRAULIC PUMP

1шт.

22

J939694

ELBOW

PLAIN UNION, M10 X 7/16 INCH

1шт.

23

J935645

SHAFT

ACCESSORY DRIVE

1шт.

24

J935644

BEARING, ROLLER

1шт.

25

84153358

DRIVING GEAR

ACCESSORY

1шт.

26

J920794

FLEXIBLE HOSE

201 MM (7-29/32 INCH)

1шт.

27

J931825

BRACE

PUMP

1шт.

28

J931996

SPACER

MOUNTING

1шт.

29

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

2шт.

30

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

31

J912772

RETAINER

BELT

1шт.

32

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

Hex, Flange, M8 x 65, G10.9

1шт.
