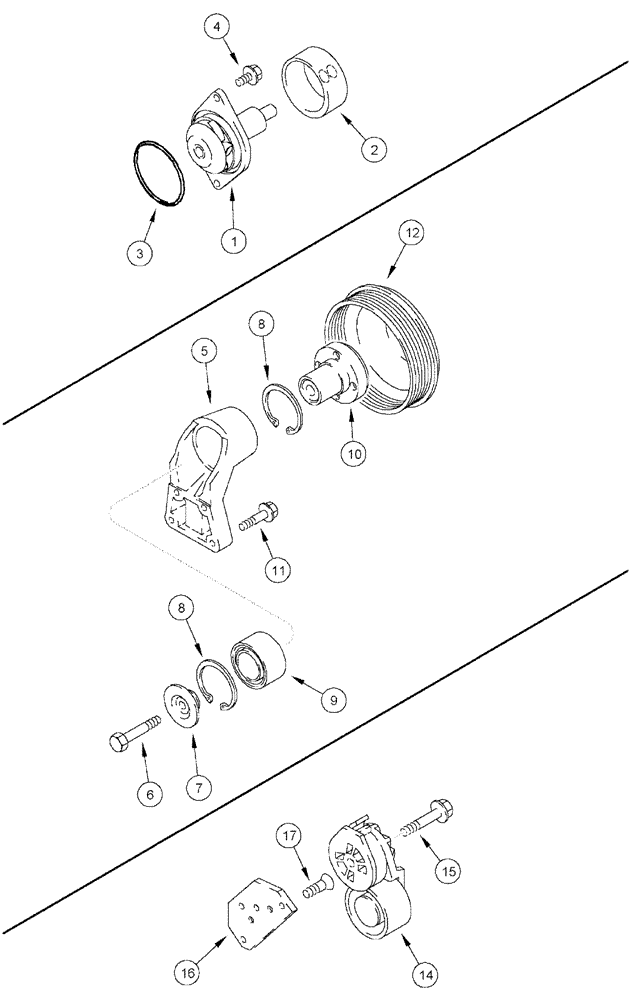

Запчасти Case IH 3150 (03-007) - WATER PUMP, BELT TENSIONER AND FAN BELT (01) - ENGINE

J286278

WATER PUMP

KIT

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

3150 Patriot Sprayer

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - WATER

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - WATER PUMP

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

BRACKET - FAN PULLEY

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

FAN HUB

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

FAN

1шт.

11

86624973

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

Fan bracket to cylinder block

1шт.

12

87739401

PULLEY,207.26mm OD

FAN

1шт.

14

J936203

BELT TENSIONER

1шт.

15

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

Belt tensioner mounting

1шт.

16

J925275

SUPPORT

BRACKET - BELT TENSIONER

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

Flat head cap

1шт.
