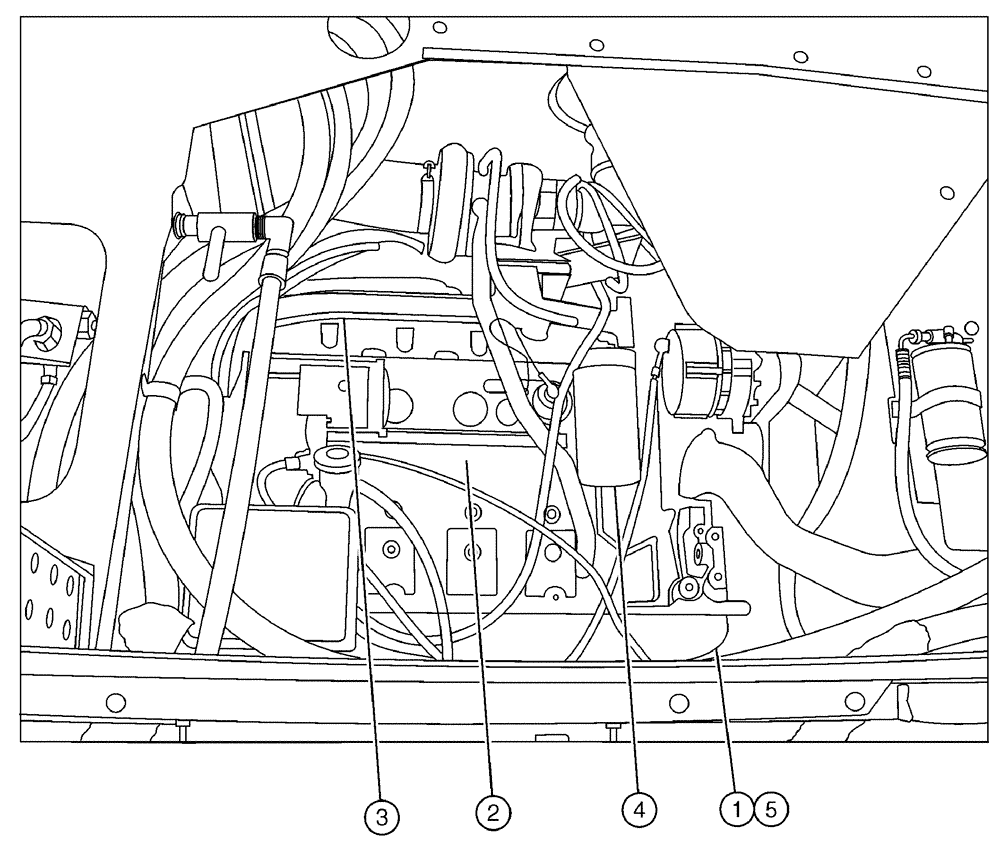

Запчасти Case IH 3150 (03-003) - ENGINE PACKAGE (01) - ENGINE

1

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

2

321942A7

ENGINE

CDC 6T-590 152HP

1шт.

2

246148A2

BASIC ENGINE

6T/6TA-590

1шт.

2

246148A2R

REMAN-BASIC ENGINE

6T/6TA-590

1шт.

2

246148A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

2

JR933645

REMAN-SHORT ENGINE

Block Assembly, short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order JR933183 remanufactured block assembly and J933220 hardware kit

1шт.

2

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number

1шт.

3

J931347

GASKET

INT MANIFOLD COVER

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - OIL

1шт.

See Fig. 03-012

1шт.

5

J940911

HEATER

ENG BLOCK -110V

1шт.
