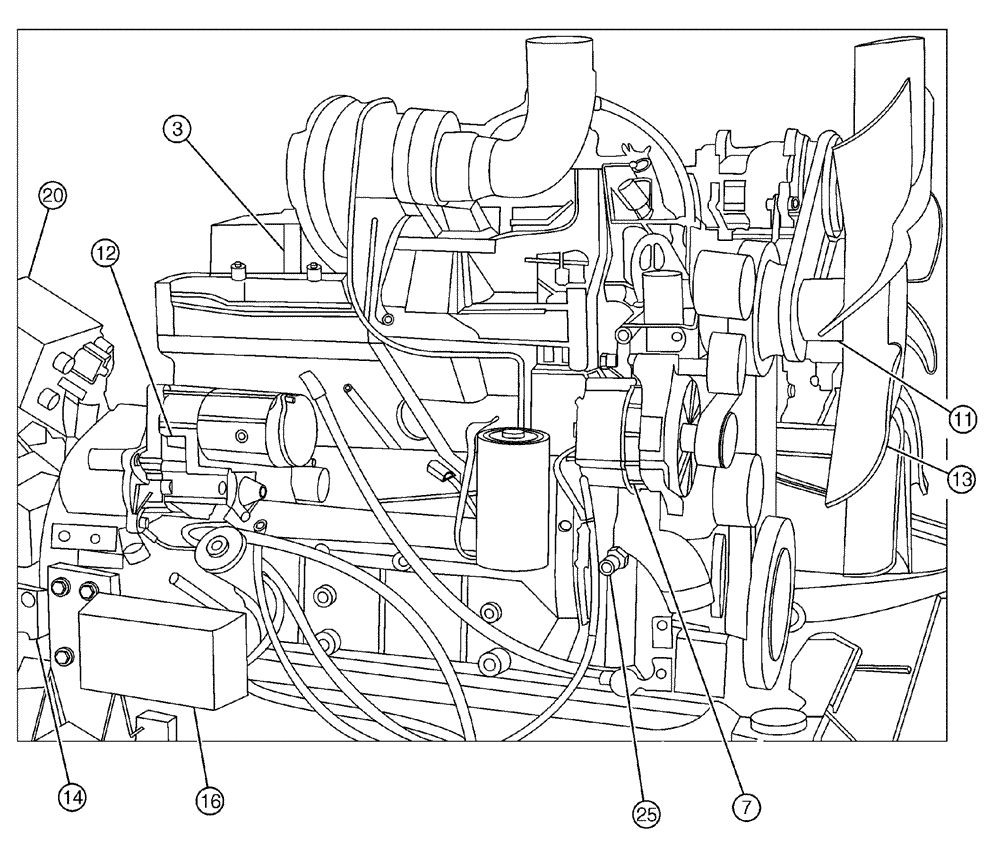

Запчасти Case IH 3150 (03-001[02]) - ENGINE ASSEMBLY (01) - ENGINE

1

BN310488

THROTTLE

ASS'Y CBL

1шт.

See Fig. 03-034

1шт.

2

BN310569

ELBOW

HOSE BARB 1/2 MPT X 3/8 X 90 DEG

1шт.

3

BN310736

CASE 5.9 L-185 HP ASSY

1шт.

See Fig. 03-003

1шт.

4

BN310830

AIR COMPRESSOR

A/C

1шт.

See Fig. 03-029

1шт.

5

BN311178

1шт.

Not Shown

1шт.

5

BN311178

1шт.

See Fig. 03-035

1шт.

6

NS

NOT SERVICED

Hydrostat With Mounting Hardware

1шт.

NS

NOT SERVICED

HDW. HYDROSTAT MTG. GROUP

1шт.

Parts of Hydrostat W/mounting Hardware, P/N 87268359

1шт.

See Fig. 06-002

1шт.

BN311139

FIP KIT

PKG. HDW. HYDSTAT SUPPORT MTG.

1шт.

Parts of Hydrostat W/mounting Hardware, P/N 87268359

1шт.

See Fig. 03-033

1шт.

7

BN311373

ALTERNATOR

1шт.

See Fig. 03-031

1шт.

10

BN316131

VENT-HEAD

1шт.

BN72167

BUSHING

1/2 X 1/4PTR-S

1шт.

Parts of Pkg, Vent Head, P/N BN316131

1шт.

BN53433

FITTING

HB,1/4"NPT X 1/4"HS, STL

1шт.

Parts of Pkg, Vent Head, P/N BN316131

1шт.

11

BN316111

W/HDWE

1шт.

BN300499

WASHER,M10, 10.9

4шт.

Parts of Spacer, Fan W/hardware, P/N BN316111

1шт.

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

Parts of Spacer, Fan W/hardware, P/N BN316111

1шт.

87031374

SPACER

Fan, 70 mm

1шт.

Parts of Spacer, Fan W/hardware, P/N BN316111

1шт.

12

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

116928A2

STARTING MOTOR

12V, 4.0 KW, Denso

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

116928A2R

REMAN-STARTER

1шт.

116928A2C

CORE-STARTER

Return Number

1шт.

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

Battery Stud

1шт.

258820A1

SCREW

M5 x 8

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

140017

WASHER,M10 x 20mm OD x 2mm Thk

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

Mounting

1шт.

86509828

LOCK WASHER,M5

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

Solenoid

1шт.

892-11010

LOCK WASHER,M10

1шт.

Parts of Starter Package W/hardware, P/N BN311554

1шт.

Battery Stud

1шт.

13

BN315810

FAN

26" dia.

1шт.

14

BN311566

HYDROSTAT LINKAGE

1шт.

See Fig. 03-043

1шт.

15

BN311596

1шт.

See Fig. 03-004

1шт.

16

BN310903

MOUNTING PLATE

W/SHIELD

1шт.

See Fig. 03-037

1шт.

17

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

18

BN319998

SENDER UNIT

oil pressure

1шт.

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

Service Parts for Ref. 11

1шт.

Service Parts for Ref. 18

1шт.

19

BN310636

STUD

M12 X 1.75 X 90

2шт.

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

Associated Part of Stud, M12 X 1.75 X 90, P/N BN310636

1шт.

20

87271985

HYDRAULIC VALVE

Shift Block With Deutsch Connector

1шт.

See Fig. 06-020

1шт.

22

BN69114

TANDEM W/ADAPTR

1шт.

BN67510

GASKET

SAE B PAD

1шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

NSS

NOT SOLD SEPARAT

PUMP-HYD-TANDEM-CW-ROT

1шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

See Fig. 06-002

1шт.

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

BN444003

FITTING

8MJ-12MB

2шт.

Parts of Assy, Pump Tandem W/adapter, P/N BN69114

1шт.

23

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

2шт.

24

BN320236

HDWE FUEL FILTER MTG

1шт.

See Fig. 03-042

1шт.

25

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

26

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

BN315812

RADIATOR

GTI #2804E Assembly

1шт.

Not Shown

1шт.

See Fig. 03-041 (Ref. 1 - 5)

1шт.

BN315811

RETAINER DRAIN HOSE

1шт.

Not Shown

1шт.

See Fig. 03-041 (Ref. 6- 10)

1шт.

87270000

WIRE HARNESS

ENGINE

1шт.

Not Shown

1шт.

BN72167

BUSHING

RED

1шт.

Not Shown

1шт.

87272737

OIL BREATHER EXTENSION, Start Serial: 20274

1шт.

Not Shown

1шт.

293685A1

HOSE,15.75 mm ID x 650.00 mm

DRAIN

1шт.

87272738

HOSE,0.50" ID

Mender

1шт.
