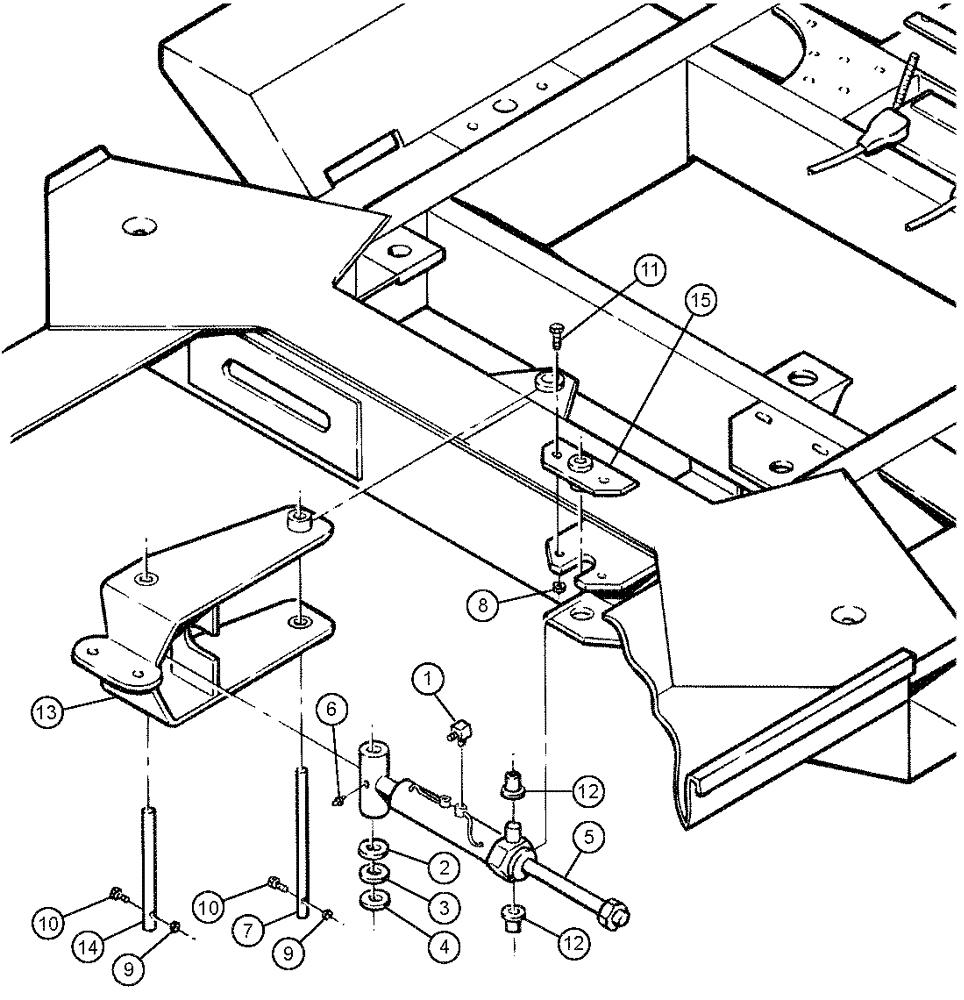

Запчасти Case IH 3150 (04-016) - STEERING ARM ASSEMBLY Suspension & Frame

1

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

2

BN65463

WASHER

Machine Bushing - 18 GA

2шт.

3

BN65464

WASHER

Machine Bushing - 14 GA

2шт.

4

BN65465

WASHER

Machine Bushing - 10 GA

2шт.

5

87270931

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.00 x 16 x 1.25

1шт.

See Fig. 07-011

1шт.

6

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

7

BN25516

PIN

pivot - 1.03" x 12.5"

1шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

88902

NUT,3/8"-16

2шт.

10

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

11

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

12

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

Flange, 1"

2шт.

13

BN69156

ARM

steering, 8" frame

1шт.

14

BN63780

PIN

1.03 dia. CRS x 10

1шт.

15

BN63790

BUSHING

1шт.
