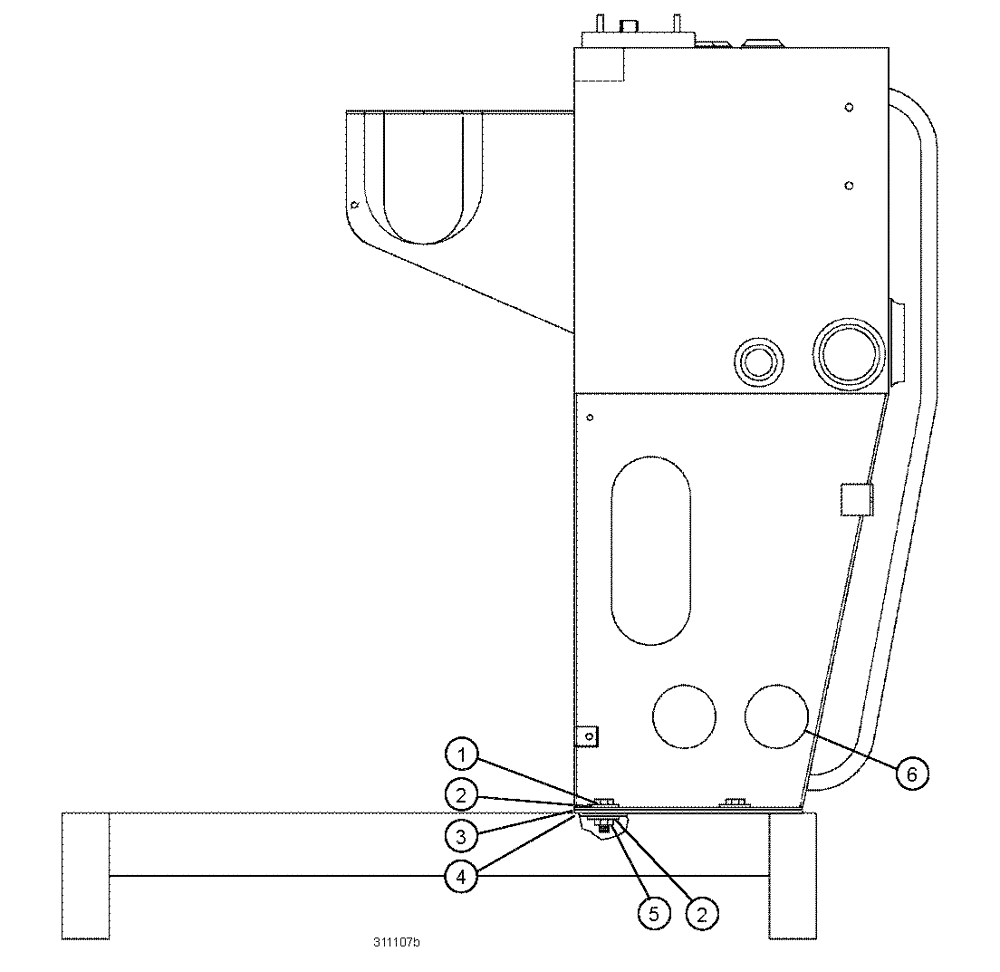

Запчасти Case IH 3150 (04-015) - HYDRAULIC TANK MOUNT GROUP Suspension & Frame

1

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

2

BN300176

WASHER

Flat, 1/2, G8

8шт.

3

BN300172

PLATE

2шт.

4

BN310999

SPACER

2шт.

5

BN50998

LOCK NUT

1/2-13 TOP, 8, PL

4шт.

6

BN303901

TRIM- 13"

2шт.

NSS

NOT SOLD SEPARAT

HOSE-1.25" SUCTION X 37.5", (SEE FIG 06-002)

1шт.

NSS

NOT SOLD SEPARAT

HOSE-1.5" SUCTION X 66" , (SEE FIG 06-002)

1шт.
