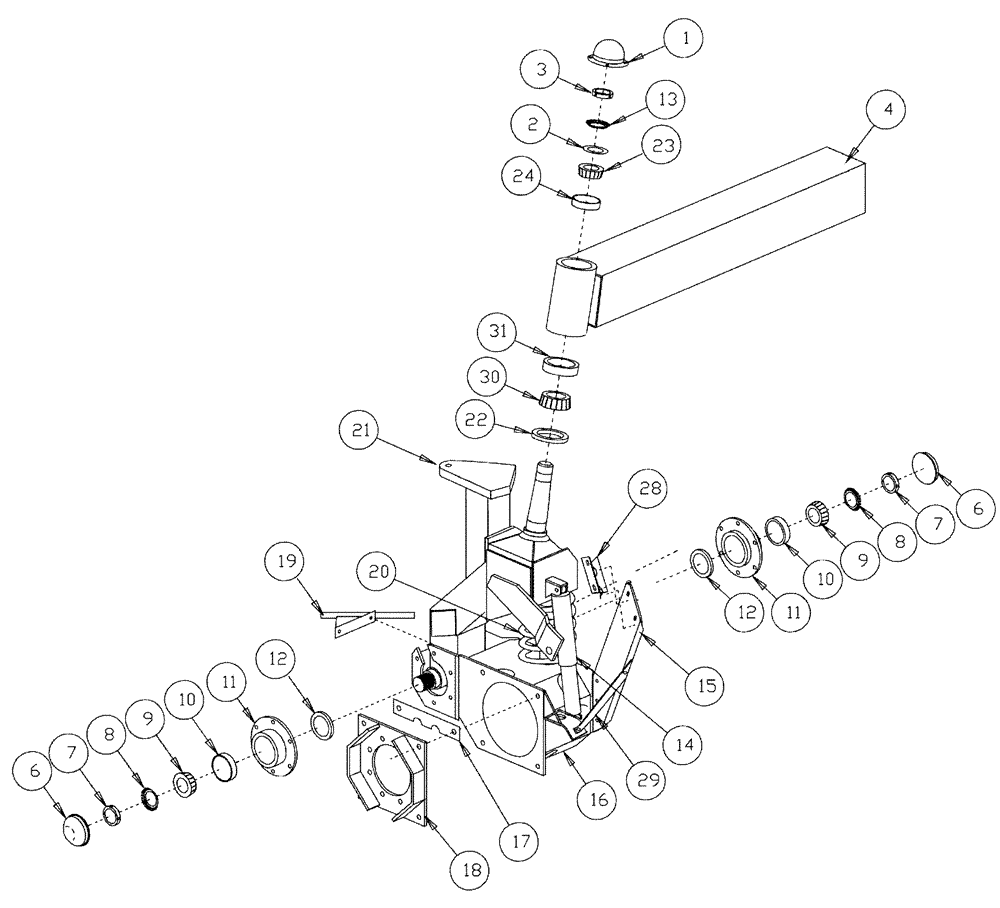

Запчасти Case IH 3150 (04-012) - STRUT ASSEMBLY - FRONT Suspension & Frame

1

BN89874

DUST CAP

2шт.

2

BN66209

WASHER,65.79mm ID x 95.25mm OD x 9.65mm Thk

spacer, front spindle

2шт.

3

BN58124

BEARING LOCK NUT

2шт.

4

BN303548

AXLE

LH, low profile

1шт.

BN303470

AXLE

RH, low profile

1шт.

6

BN80442

DUST CAP

W/DRILL & TAP

4шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part of Hub (Includes Ref. 10), P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

13

BN58125

LOCK WASHER

lock, series wh

2шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN65573

BRACKET

LH

1шт.

Shown

1шт.

BN65574

BRACKET

RH

1шт.

16

BN66423

BRACKET

LH

1шт.

Shown

1шт.

BN66422

FRAME

HOUSING R.H.

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66291

BRACKET

PLATE

2шт.

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associated Part of Plate, P/N BN66291

1шт.

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part of Plate, P/N BN66291

1шт.

87343677

NUT

Hex, 5/8"-18, G8

8шт.

87342967

BOLT

5/8"-18 x 2.5", Holds Wheel Hub to Bracket Ref 18

16шт.

BN50775

LOCK NUT

5/8"-18, Holds Wheel Hub to Bracket Ref 18

16шт.

19

BN29690

DEFLECTOR

2шт.

20

BN322212

COIL SPRING

CTRLESS GRND

2шт.

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part of Spring Coil, Centerless Ground, P/N BN322212

1шт.

21

BN323922

STRUT

LH, Low Profile

1шт.

BN323921

STRUT

RH, Low Profile

1шт.

22

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

28

BN63919

BRACKET

Hyd hose

2шт.

29

BN65577

BRACKET

LH

1шт.

Shown

1шт.

BN65576

SUPPORT

R.H.

1шт.

30

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

2шт.

31

BN89875

RACE

2шт.

87570121

BOLT, FRT STRUT

1шт.

Not Shown

1шт.
