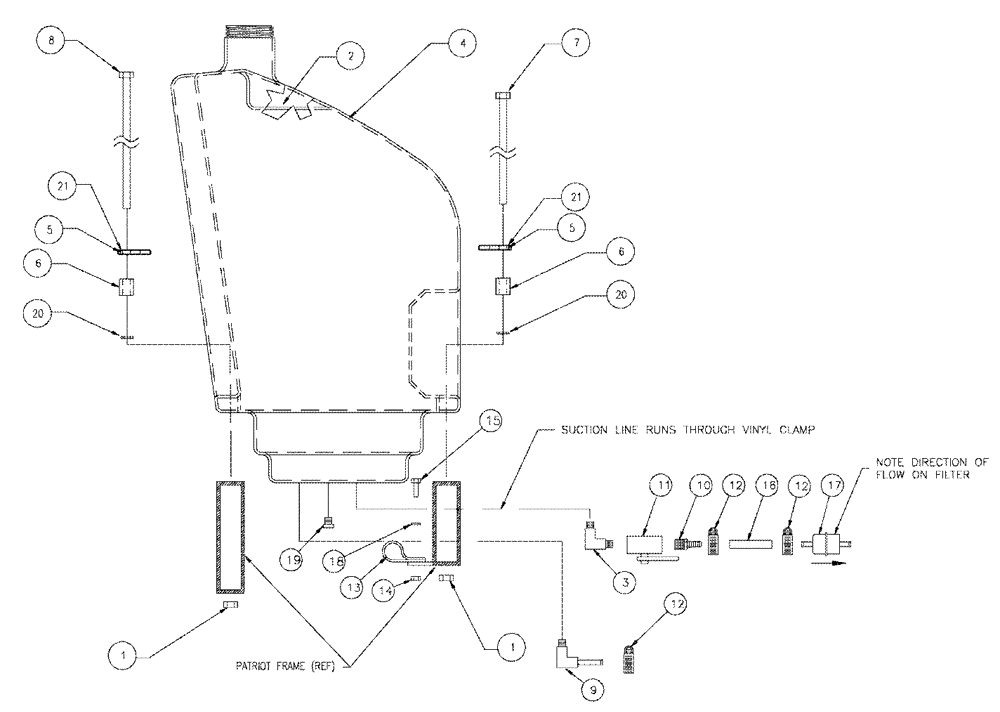

Запчасти Case IH 3150 (04-006) - FUEL TANK ASSEMBLY & HARDWARE Suspension & Frame

1

86992215

LOCK NUT,1/2"-13, GC

4шт.

2

BN66125

SENDER UNIT

SENDER FUEL 12V ---25"

1шт.

3

BN52300

ELBOW

90 DEG 1/4-18 NPT

1шт.

4

BN67342

FUEL TANK

1шт.

5

BN67652

PLATE

Tank Hold Down

4шт.

4a

BN68502

CAP

Used on Fuel Tank

1шт.

6

BN67653

BUSHING

TB, RD, bushing

4шт.

7

280214

BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5

2шт.

8

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

2шт.

9

BN310568

ELBOW-CONNECTION

ELBOW-CONECTION HOSE BARB 1/4MPT X 5/16 X 90D

1шт.

10

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

11

BN94071

VALVE

BRONZE BALL 1/4 NPT

1шт.

12

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

4шт.

13

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

14

88902

NUT,3/8"-16

1шт.

15

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

16

BN317990

FUEL HOSE,0.375" ID x 3.00", SAE 30R6, SAE 30R7

1шт.

17

D139225

FILTER, FUEL

3/8" BARBS

1шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

19

BN68543

PLUG

1/4-NPT INT HEX

1шт.

20

BN50595

WASHER,1/2", Stainless

4шт.

21

84237916

RUBBER MOUNTING

4шт.
