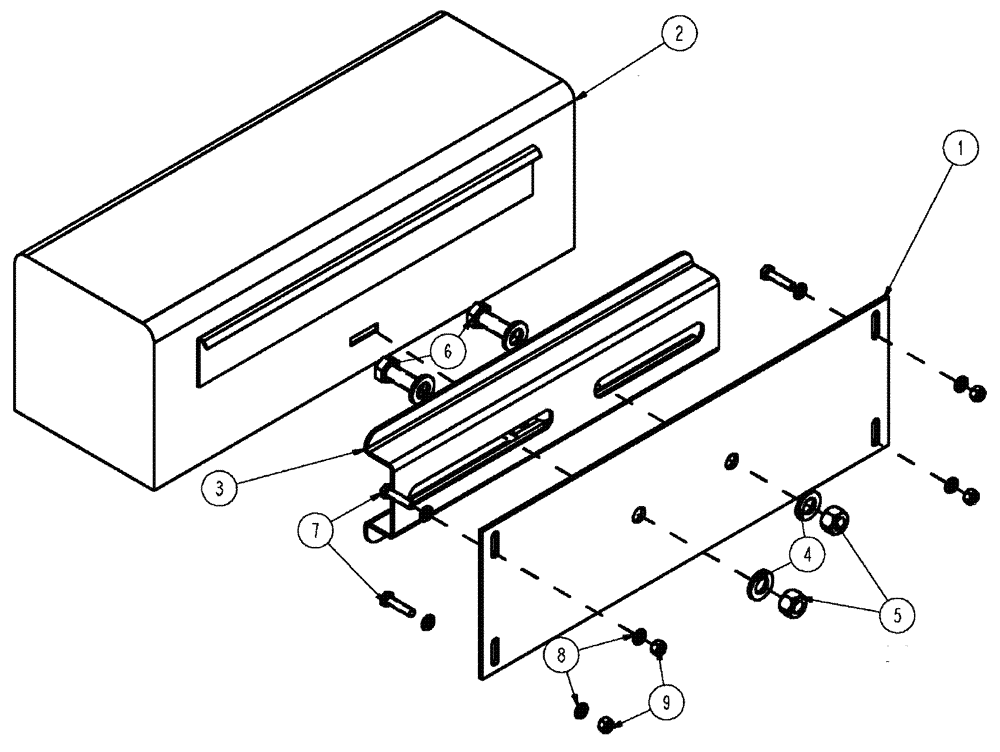

Запчасти Case IH 3150 (04-004) - PORTABLE TOOLBOX ASSEMBLY Suspension & Frame

1

87268337

ADAPTER

mount, tool box

1шт.

2

A181436

TOOL BOX

Steel

1шт.

3

A181434

SUPPORT

Mount, Toolbox

1шт.

4

BN313639

WASHER

M12, 30 MMOD

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

2шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

8

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

9

353308

NUT,M6 x 1.0, Cl 8

4шт.
