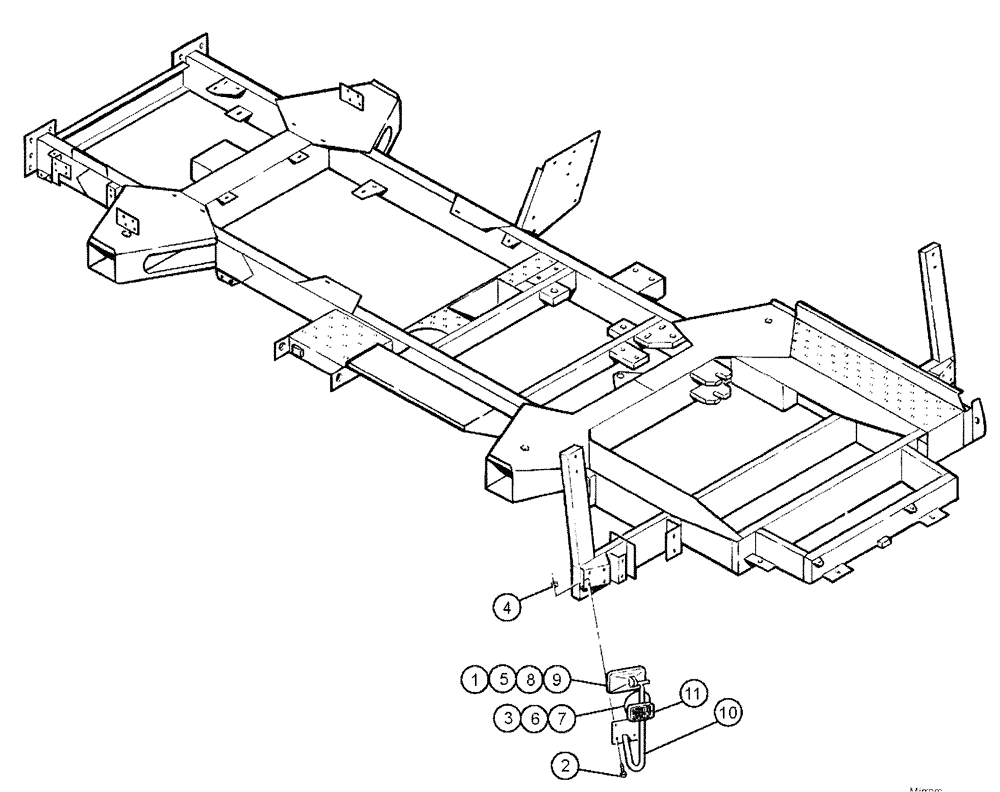

Запчасти Case IH 3150 (04-003) - MIRROR, SIGNAL LIGHT ASSEMBLY Suspension & Frame

1

88902

NUT,3/8"-16

4шт.

2

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

3

280736

NUT,5/16"-18, GC

1шт.

6

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

7

BN63850

MIRROR

8" CONVEX BLACK

1шт.

8

BN63851

MIRROR

7.5 X 10.5 BLACK

1шт.

9

BN306477

CLAMP

Assembly, Mirror

1шт.

280129

NUT,1/4"-20

2шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN306478

INSERT

rubber, 5/8" bore

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN306479

CLAMP

two halves, poly

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN306480

PLATE

top

2шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN50138

WASHER,1/4", SS

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN55371

BOLT

1/4-20 X 2.5, HH, SS

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

1шт.

Parts of Mount, Mirror for 3/4" Shaft, P/N BN306477

1шт.

10

BN68252

MIRROR

ARM-WELDMENT

1шт.

11

BN66130

FLASHER LAMP

Signal, Amber 12V

1шт.

529068

BULB,#1156, 12V, 21W

1шт.

Service Parts for Ref. 11

1шт.

BN300878

LENS

amber

1шт.

Service Parts for Ref. 11

1шт.

BN300881

CAP

Lens, Black

1шт.

Service Parts for Ref. 11

1шт.
