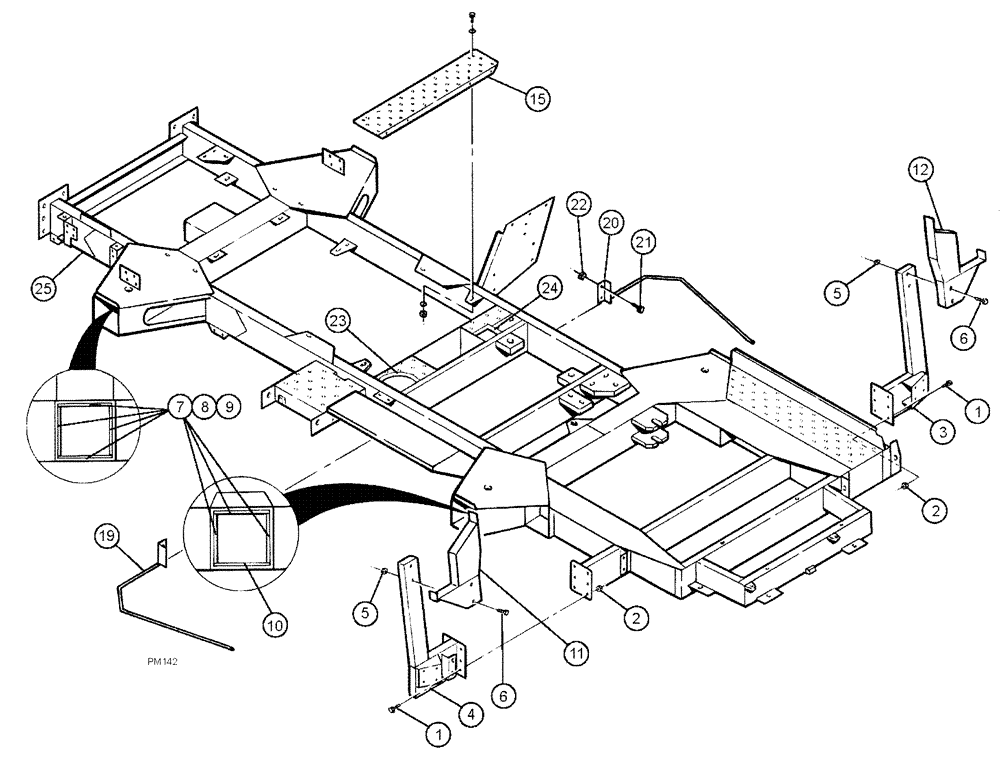

Запчасти Case IH 3150 (04-001) - FRAME ASSEMBLY Suspension & Frame

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

BN66275

SUPPORT

WELDMENT - L.H. CRADLE

1шт.

4

BN66392

SUPPORT

WELDMENT - R.H. CRADLE

1шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

7

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

8

BN50014

BOLT

5/16"-18 x .75, EH

16шт.

9

BN25527

LINER

nylatron .187 x 7 x 40, Years: -01-OCT-08

14шт.

See Fig. 04-002

1шт.

10

BN303473

LINER

Nylatron w/notch, Years: -01-OCT-08

2шт.

See Fig. 04-002

1шт.

11

87271033

CRADLE

RH - 75' Boom

1шт.

BN66528

SUPPORT

CRADLE-WELDMENT-R.H.-90' BOOM

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

12

87271032

CRADLE

LH 75' Boom

1шт.

BN66596

SUPPORT

CRADLE-WELDMENT-L.H.-90' BOOM

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

15

BN69680

14GA HRS 11.5 X 44.0

1шт.

See Fig. 04-017

1шт.

19

BN25822

GUIDE

RH hose roller

1шт.

20

BN25823

GUIDE

LH hose roller

1шт.

21

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

4шт.

23

BN303902

SOFT TRIM

9-3/4"

2шт.

24

BN303903

SOFT TRIM

6-3/4"

1шт.

25

87269760

FRAME

1шт.
