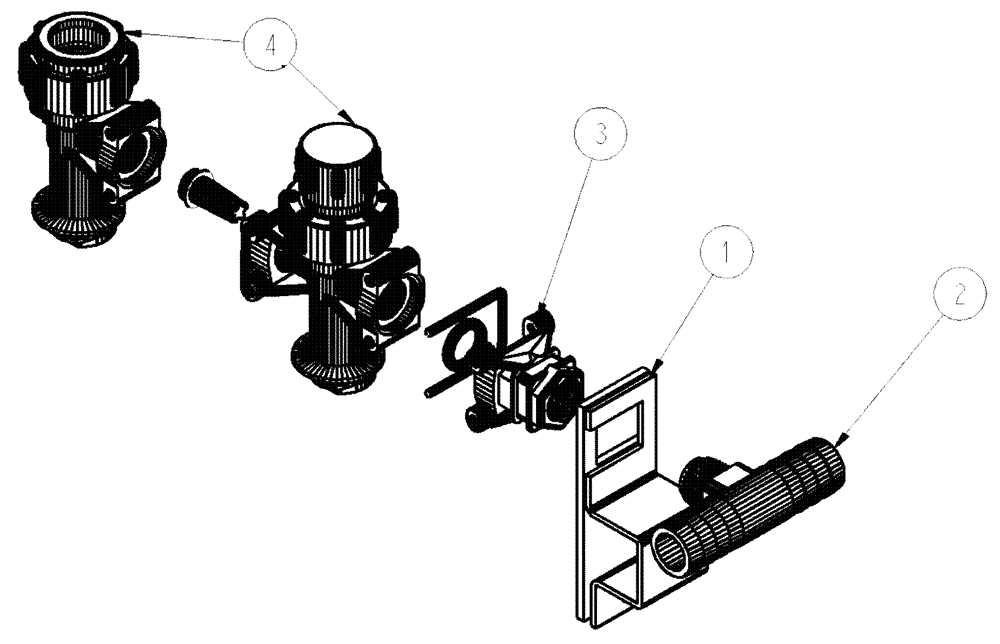

Запчасти Case IH 3150 (11-006) - 2 WAY WILGER, ASSEMBLY Options

1

87268381

KIT,3/4" Sq

mount, 3/4" sq. x 1" sq.

1шт.

2

87268383

FITTING,Hose Shank Adapter-3/4" Two Way

Tee, .75HB .75HB .38MP

1шт.

3

87268382

ADAPTER,SQ. Mount Adapter

combo clip, F x 3/8 nptf

1шт.

4

BN325221

NOZZLE

DUAL WILGER C-R AIM (SEE FIG 11-009)

1шт.
