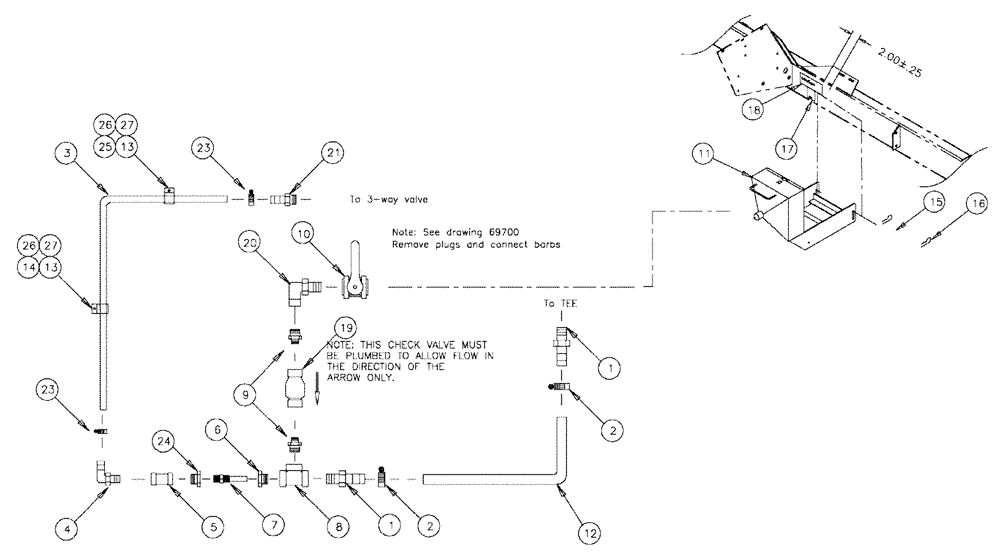

Запчасти Case IH 3150 (11-001) - CHEMICAL INDUCTOR - SPHERICAL Options

1

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

2

87485001

CLAMP,1.31" - 2.25"

#28, Stainless Steel

2шт.

3

BN53912

HOSE

1" ID EPDM x 38"

1шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

5

BN66968

COUPLING

1" Poly

1шт.

6

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

7

BN301610

VENTURI

Rework

1шт.

8

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

9

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

10

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

11

BN65145

FUNNEL

1шт.

12

BN301615

HOSE

1.5" EPDM x 36"

1шт.

15

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

16

BN71006

COTTER PIN

1/8", #11

2шт.

18

BN313048

PROTECTIVE CLOTHING, SEE FIG 10-003

1шт.

19

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

20

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

21

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

1шт.

23

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

24

BN53665

BUSHING

1" x .75 Poly

1шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

26

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

27

BN50142

WASHER,5/16", Stainless Steel

2шт.

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

BN53630

LATCH

Rubber, Inductor Cover, Not Shown

1шт.
