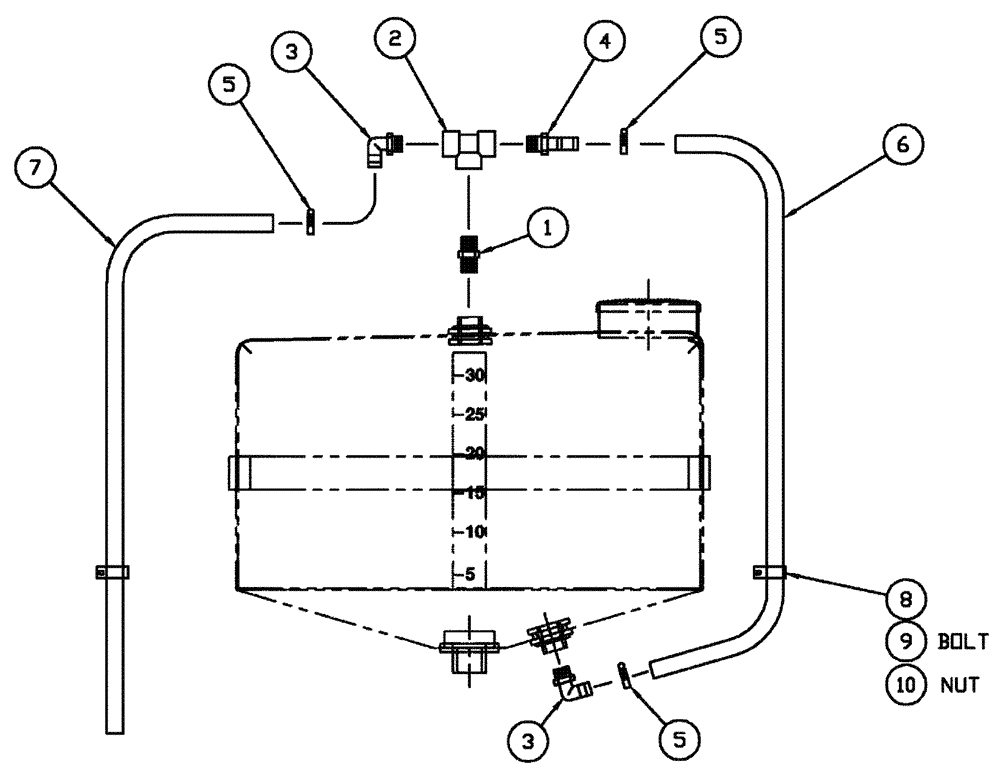

Запчасти Case IH 3150 (09-012) - SIGHT GAUGE PACKAGE, RINSE TANK Liquid Plumbing

1

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

2

BN73560

TEE

3/4" POLY PIPE

1шт.

3

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

4

BN73561

FITTING

BARB, 3/4 NPT X 3/4 HS

1шт.

5

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

3шт.

6

BN319035

HOSE,0.75" ID x 46.00"

Sight gauge

2шт.

7

BN53883

HOSE

3/4" EPDM x 50"

1шт.

8

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

9

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.
