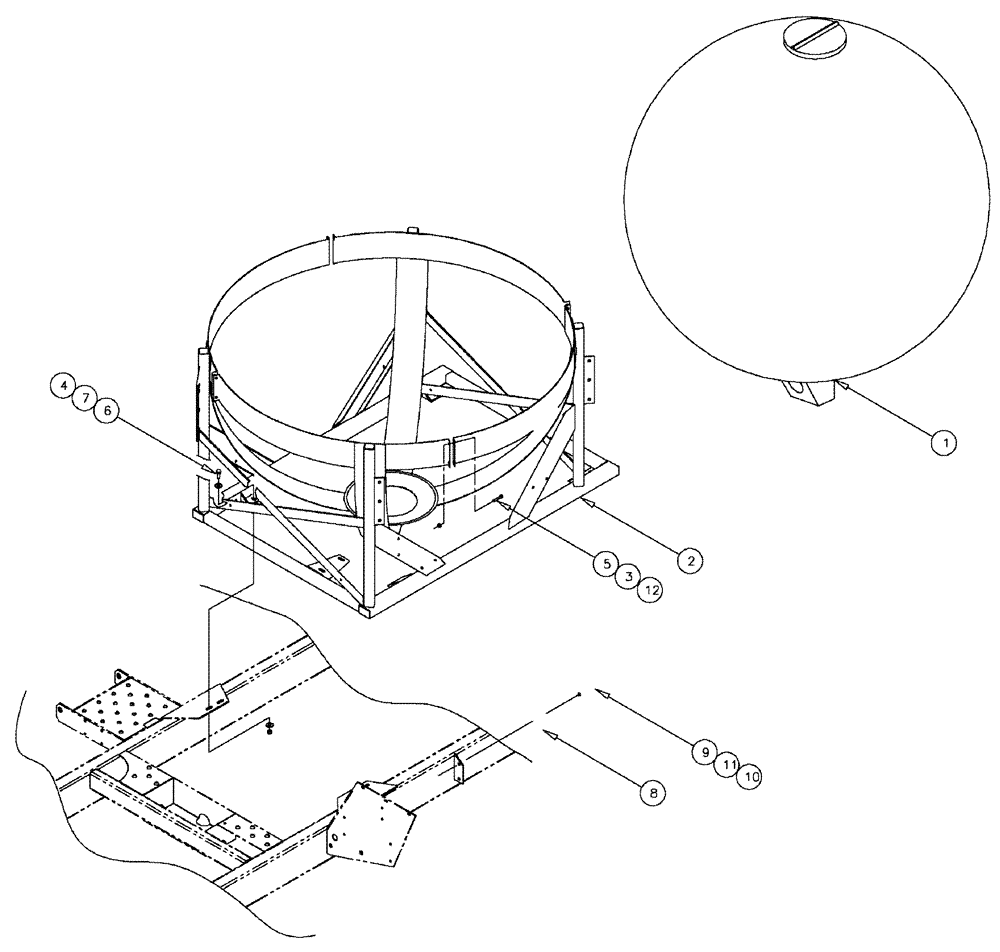

Запчасти Case IH 3150 (09-011) - TANK PACKAGE, SPHERICAL Liquid Plumbing

1

BN310976

TANK

TNK 750 GAL SPH (GRY), SEE FIG 09-014

1шт.

2

BN25393

BASKET ASSY

750 Gallon Spherical

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

5

88902

NUT,3/8"-16

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

8

BN322048

SUPPORT

1шт.

9

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

10

280736

NUT,5/16"-18, GC

2шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

12

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

4шт.
