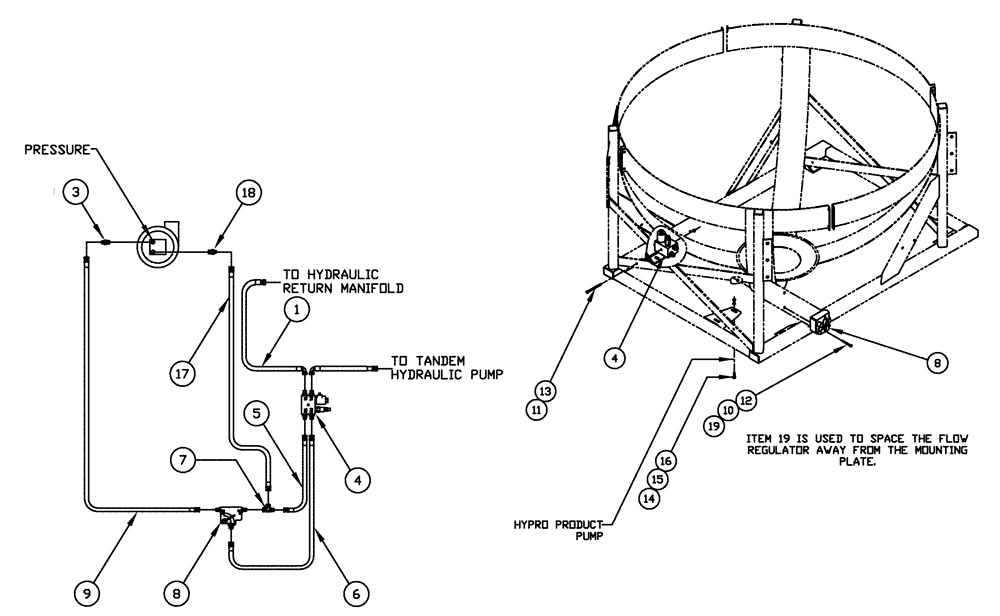

Запчасти Case IH 3150 (09-008) - HYDRAULIC GROUP, SPHERICAL Liquid Plumbing

1

BN311289

HOSE,0.75" ID x 31.00"

100R2

1шт.

3

BN444004

FITTING

O-RING 37 FLARE

1шт.

4

BN311288

HYDRAULIC VALVE

1шт.

See Fig. 06-029

1шт.

5

BN311269

HOSE,0.75" ID x 26.00"

100R2

1шт.

6

BN55327

HOSE

1/2" X 26" 100R2

1шт.

7

BN53573

TEE

jic-1 1/16, male-female

1шт.

8

BN311338

REGULATOR

flow

1шт.

See Fig. 06-030

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

1шт.

10

87342614

BOLT

1/4-20 X 2.75", HH, 5, PL

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 X 4, HH, SS

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.

14

BN50258

BOLT,3/8"-16 X 1.25", Stainless

1шт.

15

BN50146

WASHER,3/8", Stainless

1шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

1шт.

17

BN311268

HOSE,0.75" ID x 42.00"

100R2

1шт.

18

BN66219

FITTING

12MJ-8MB

1шт.

19

BN50138

WASHER,1/4", SS

1шт.
