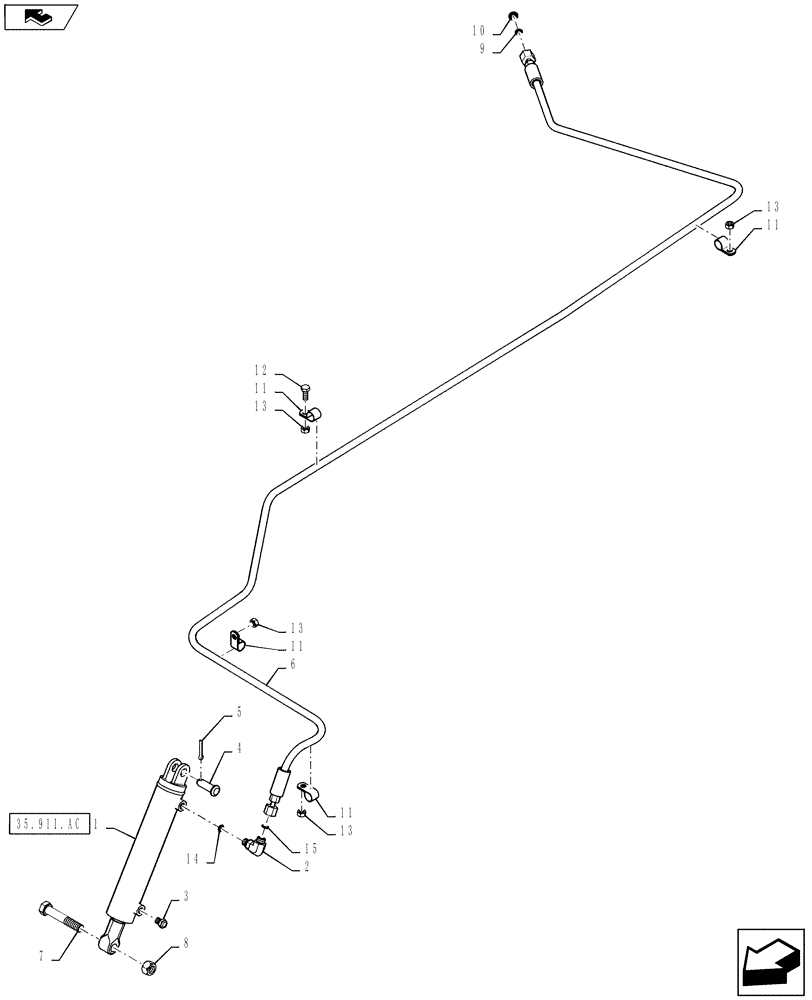

Запчасти Case IH 2240 (35.911.AK[01]) - LADDER HYDR LINES (35) - HYDRAULIC SYSTEMS

1

84330410

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 152.4mm Stroke

Ladder, 1-1/2" x 6" x 3/4"

1шт.

See Figure 35.911.AC For Service Parts

1шт.

2

BN302547

90 ELBOW

Swivel,ADJ-4,ORFS X 7/16-20

1шт.

3

87267314

BREATHER

Sintered -4 SAE

1шт.

4

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

5

432-1216

COTTER PIN,3/16" x 1"

1шт.

6

84339806

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel x 11/16" - 16 ORFS Swivel x 1/4" ID x 110-5/8" Long, Ladder Cylinder To Park Brake Steel Line

1шт.

7

87675524

BOLT,Hex, M14 - 2 x 80mm, Class 8.8, DOR

1шт.

8

84603133

NUT

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

1шт.

10

BN313268

ORIFICE

0.042", -6 Disk

1шт.

11

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

3шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

14

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", OFRS

1шт.
