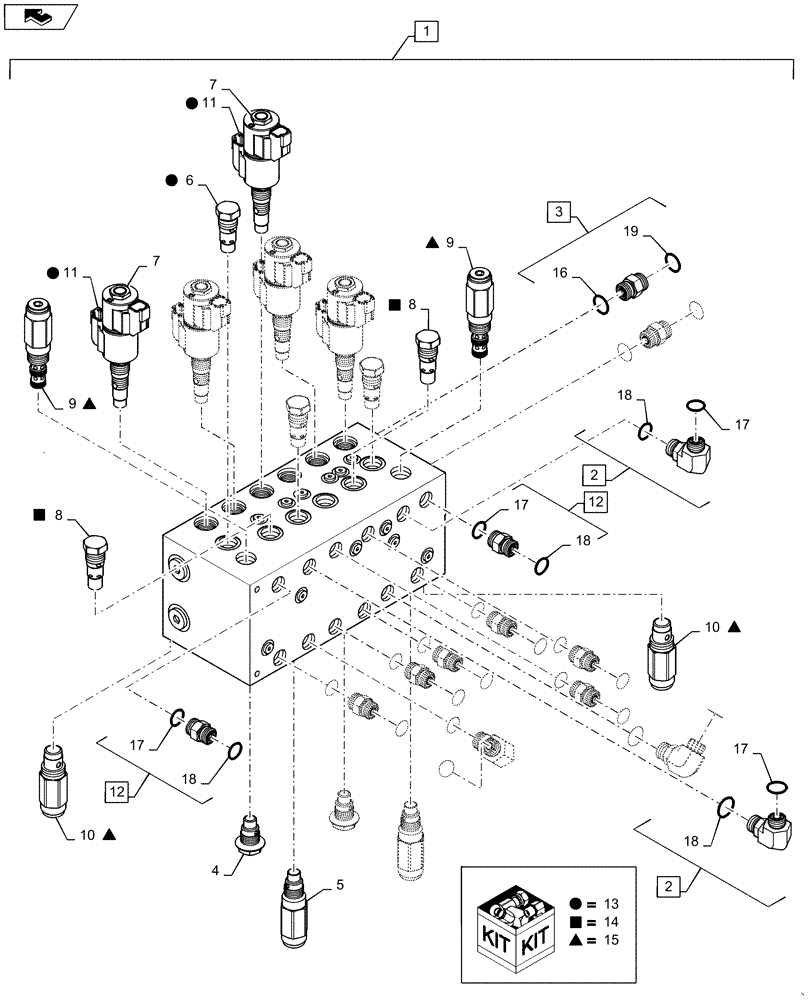

Запчасти Case IH 2240 (35.911.AF[01]) - BOOM CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47361206

CONTROL VALVE

Complete, With Fittings, Incl 2 Through 12

1шт.

2

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 17, 18

4шт.

3

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Incl 16, 19

2шт.

4

47445186

CHECK VALVE

Hydraulic

2шт.

5

47445319

VALVE

Relief

2шт.

6

47445195

VALVE

Hydraulic Cartridge

4шт.

7

87582524

COIL

12V

12шт.

8

47445287

VALVE

Hydraulic Cartridge

2шт.

9

47445205

VALVE PRESSURE RELIE

Hydraulic Cartridge

2шт.

10

47445213

VALVE PRESSURE RELIE

Hydraulic Cartridge

2шт.

11

47445216

SOLENOID VALVE

Hydraulic Cartridge

6шт.

12

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Incl 17, 18

8шт.

13

87269973

SEAL KIT

For 6 And 11

18шт.

14

87269974

SEAL KIT

For 8

1шт.

15

87364602

SEAL KIT

For 9, And 10

4шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

12шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
