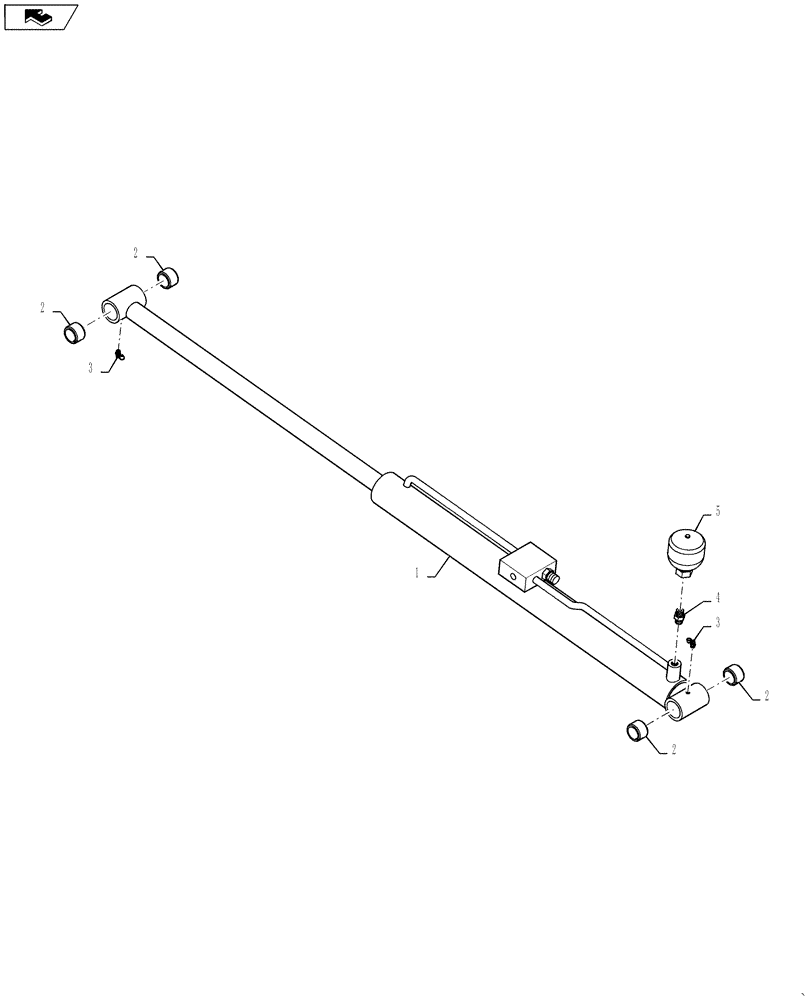

Запчасти Case IH 2240 (35.911.AD[01]) - BOOM LIFT CYLINDER GROUP (35) - HYDRAULIC SYSTEMS

1

87267726

CYLINDER,Double Acting, 38.1mm Rod, 723.9mm Stroke

Boom Height, 2-1/2" x 28-1/2" x 1-1/2"

1шт.

See Figure 35.911.AD(02) For Service Parts

1шт.

2

87271483

BUSHING

Spring

4шт.

3

BN69951

CAP

Grease

2шт.

4

BN313038

FITTING

9/16" -18 ORB x 9/16" -18 ORB

1шт.

5

87267325

ACCUMULATOR

10 CU. 825 PSI

1шт.
