(35.911.AB[02]) - OUTER BOOM FOLD CYLINDER

Запчасти Case IH 2240 (35.911.AB[02]) - OUTER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

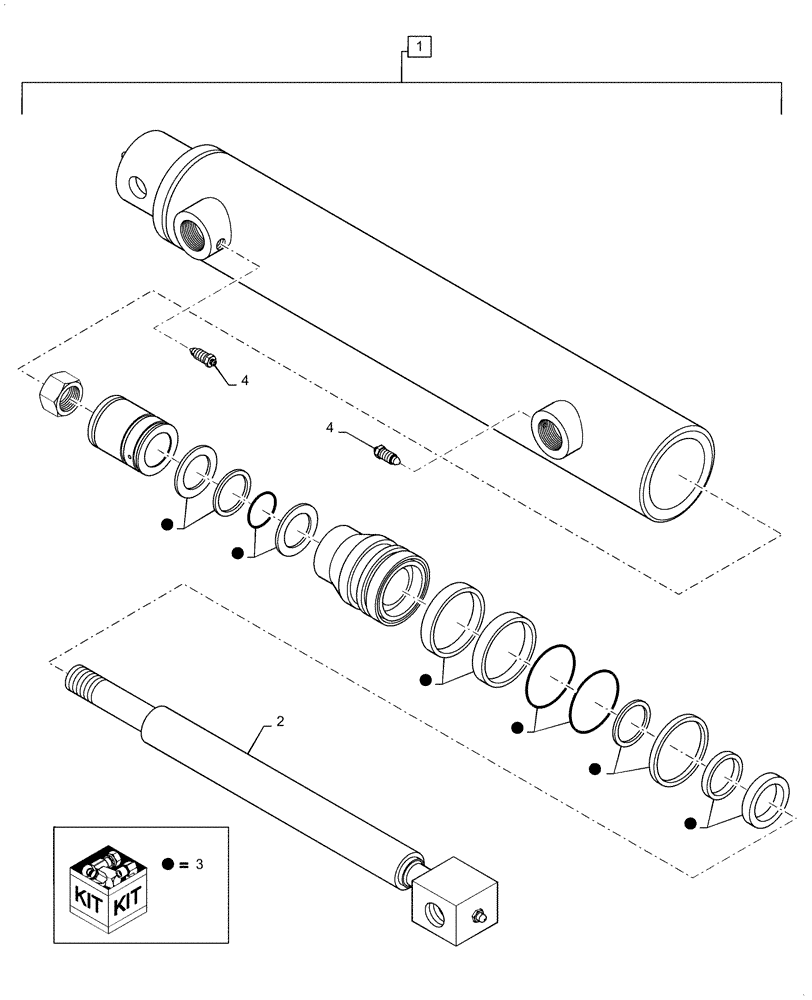

Схема запчастей Case IH 2240 - (35.911.AB[02]) - OUTER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
3
4
1
3
3
4
3
3
3
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87655640

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 511.05mm Stroke

Outer Boom Fold, 2-1/4" x 20.12" x 1-1/4", Complete, Incl 2 - 3

1шт.

2

87746976

ROD

Outer Boom Fold Cylinder

1шт.

3

87746977

SEAL KIT

Outer Boom Fold Cylinder

1шт.

4

47918777

SCREW

Bleeder

2шт.
