(35.735.AA[05]) - SOLENOID VALVE, AXLE ADJUSTMENT

Запчасти Case IH 2240 (35.735.AA[05]) - SOLENOID VALVE, AXLE ADJUSTMENT (35) - HYDRAULIC SYSTEMS

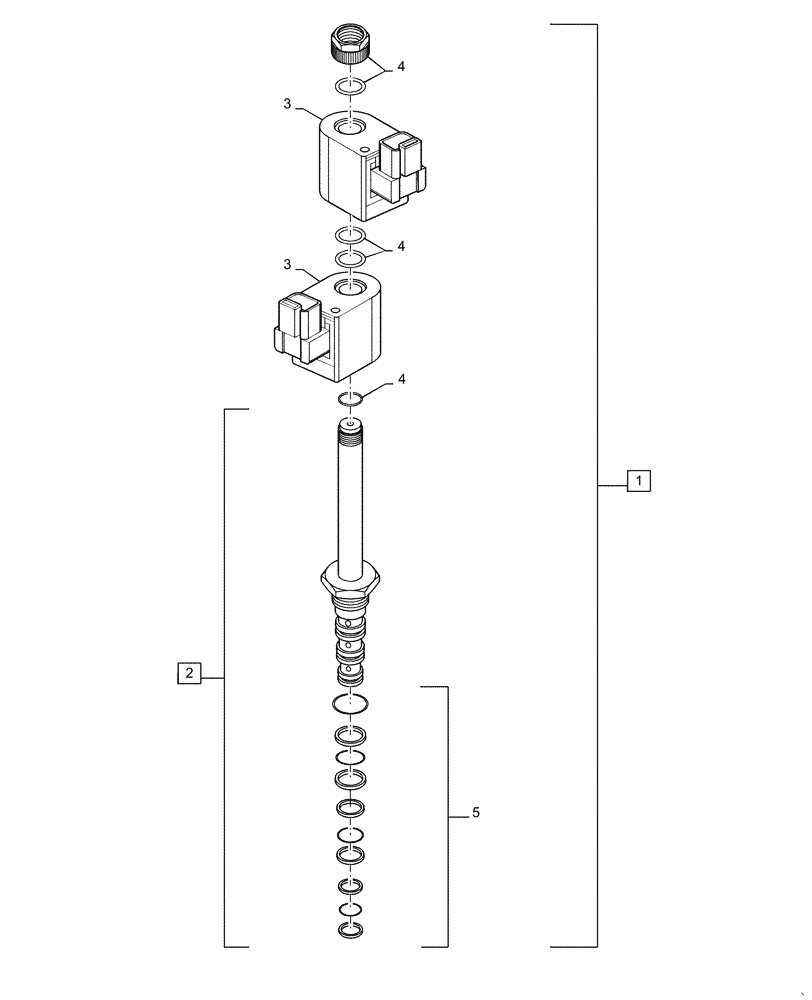

Схема запчастей Case IH 2240 - (35.735.AA[05]) - SOLENOID VALVE, AXLE ADJUSTMENT (35) - HYDRAULIC SYSTEMS
1
4
4
3
2
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84198497

SOLENOID VALVE

With Coil, Axle Adjustment, Incl 2 - 5

1шт.

2

84198498

SOLENOID VALVE

Incl 4 - 5

1шт.

3

87758994

COIL

2шт.

4

87758995

RETAINER

Nut, Coil, SV08 With O-ring

1шт.

5

87472228

SEAL KIT

Axle Adjustment Solenoid

1шт.
