Запчасти Case IH 2240 (35.735.AA[03]) - CONTROL VALVE ASSY, AXLE ADJUSTMENT, BOOM HEIGHT (35) - HYDRAULIC SYSTEMS

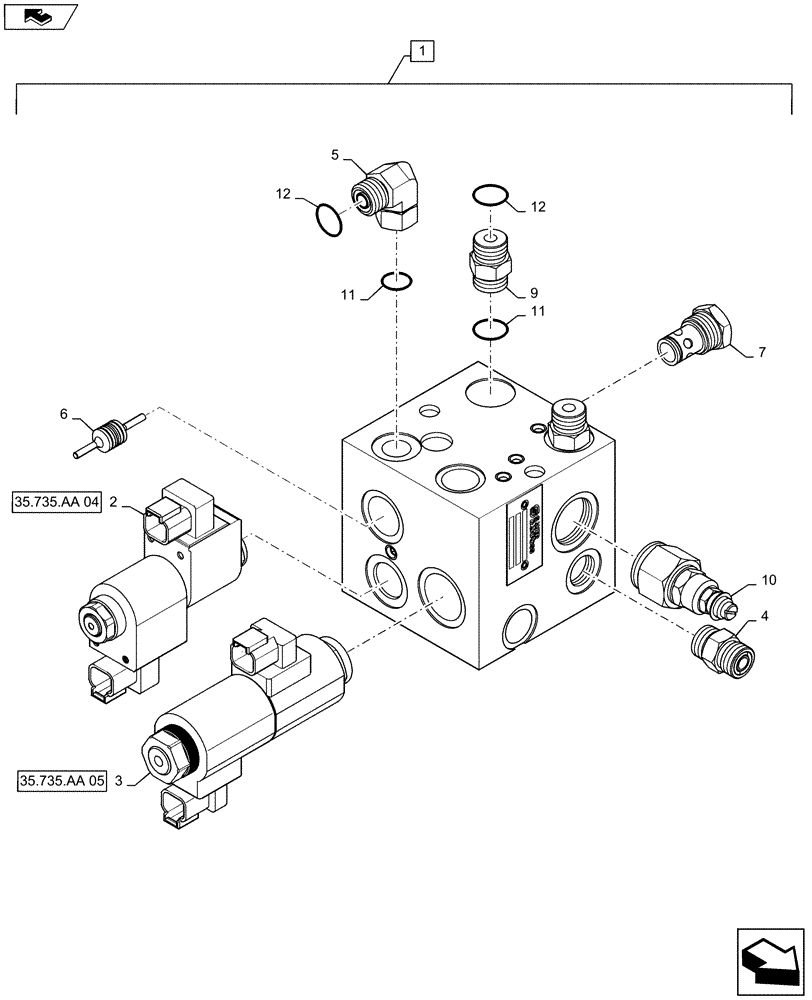

Схема запчастей Case IH 2240 - (35.735.AA[03]) - CONTROL VALVE ASSY, AXLE ADJUSTMENT, BOOM HEIGHT (35) - HYDRAULIC SYSTEMS
35.735.aa 05
11
5
7
12
1
12
10
3
35.735.aa 04
11
9
4
6
home
2

Артикул

Название

Примечание

Количество

1

47527978

CONTROL VALVE

Complete, 2-Bank Valve with Fittings, Axle Adjust, Incl 2 - 12

1шт.

2

87758319

SOLENOID VALVE

With Coil, Axle Adjust

1шт.

See 35.911.AG 02 for Service

1шт.

3

84198497

SOLENOID VALVE

With Coil, Axle Adjust

1шт.

See 35.911.AG 03 for Service

1шт.

4

BN302646

FITTING

Straight, 11/16-16 ORFS x 9/16-18 ORB, Incl 11, 12

5шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 11, 12

1шт.

6

87758337

PISTON

Valve

1шт.

7

87758336

VALVE

Check, Incl 8

2шт.

8

87472226

SEAL KIT

Check Valve

2шт.

9

87758323

ORIFICE

.039

1шт.

10

47530838

VALVE

Pressure Reducing

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

6шт.

Выбрано товаров: 14
