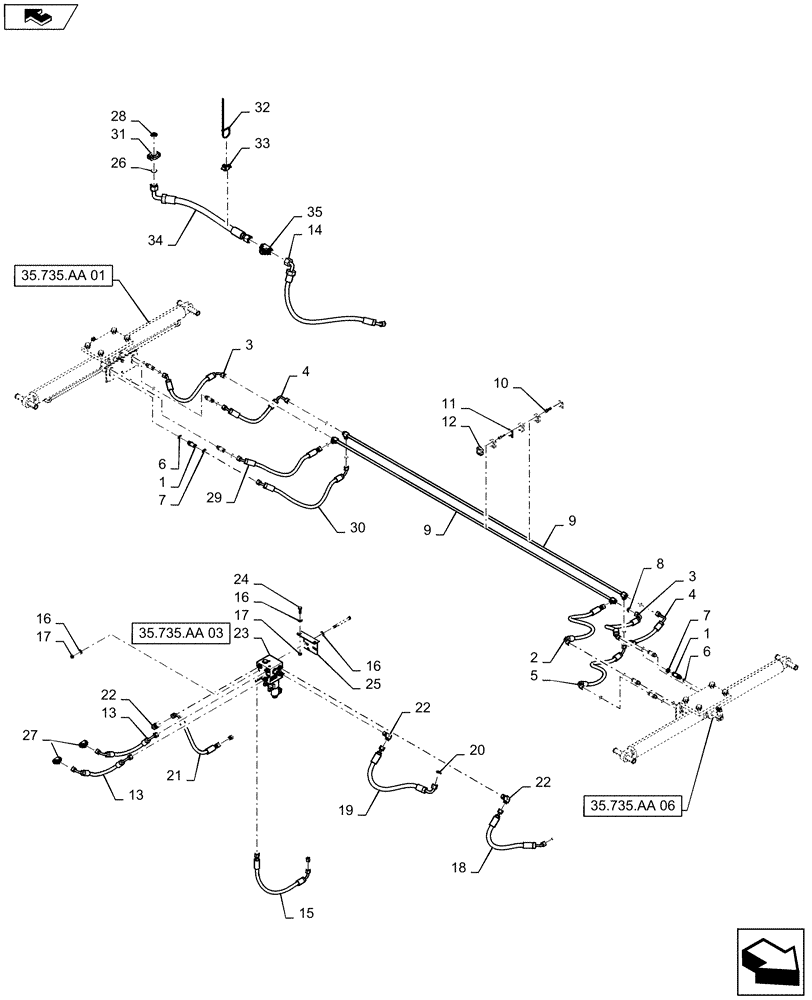

Запчасти Case IH 2240 (35.735.AA[02]) - HYDRAULIC LINES, AXLE ADJUSTMENT (35) - HYDRAULIC SYSTEMS

1

84316405

HYD CONNECTOR

Straight

8шт.

2

84538741

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 27" Long, Right Front Cylinder To Steel Line

1шт.

3

84377134

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS 45 Degree Short Elbow x 3/8" ID x 20" Long, Left Side Cylinder To Steel Lines

2шт.

4

84377120

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Long Elbow x 11/16" - 16 ORFS 45 Degree Short Elbow x 3/8" ID x 18" Long, Left Side Cylinder To Steel Lines

2шт.

5

84538742

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 18" Long, Right Front Cylinder To Steel Line

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

12шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

12шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

84350070

RIGID TUBE

Steel Lines

2шт.

10

BN313261

BOLT

Stacking, 1/4"

12шт.

11

BN313264

PLATE

Safety, 1/2" Tube

6шт.

12

BN29783

CLAMP

Single, 1/2" Tube

12шт.

13

47358858

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 16" Long, Tee To Adjusting Valve

2шт.

14

84377117

HYDRAULIC HOSE

13/16" - 16 ORFS Swivel Short Elbow x 13/16" - 16 ORFS 45 Degree Short Elbow x 1/2" ID x 34" Long, Tee To Steel Line

1шт.

15

84377139

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 19-1/2" Long, Control Valve To Steel Lines

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

17

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

18

84377129

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel 45 Short x 3/8" ID x 19-1/2" Long, Control Valve To Steel Lines

1шт.

19

84377124

HYDRAULIC HOSE

13/16" - 16 ORFS Swivel Short Straight x 13/16" - 16 ORFS Swivel Elbow Medium x 1/2" ID x 34" Long, Control Valve To Steel Lines

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

21

47358859

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 16-1/2" Long, Control Valve To Steel Lines

1шт.

22

BN302443

FITTING

-6 x -6 x 90 Degree

3шт.

23

47527978

CONTROL VALVE

Complete, See 35.735.AA 03 For Service Parts

1шт.

24

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

25

47384850

PLATE

Valve Mounting

1шт.

26

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

27

BN302512

FITTING

Tee, Union, 3/8" ORFS

2шт.

28

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

29

84377137

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel 45 Short x 3/8" ID x 23" Long, Right Rear Cylinder To Steel Lines

1шт.

30

84377138

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS 45 Degree Short Elbow x 3/8" ID x 27" Long, Right Rear Cylinder To Steel Lines

1шт.

31

BN316600

KIT

3/4" Split Flange Code 61 Fitting Incl 28

1шт.

32

BN570007

STRAP

Black Only .12-4.0 Band

1шт.

33

47425285

CLAMP

3/8" Spin On H-Mount

1шт.

34

47416625

HYDRAULIC HOSE

1 3/16 -12 ORFS Swivel Short Straight x Male Code 61 Elbow Short

1шт.

35

84384818

UNION TEE

3/4" ORFS

1шт.
