Запчасти Case IH 2240 (35.703.AD[01]) - SUSPENSION, ACTIVE (35) - HYDRAULIC SYSTEMS

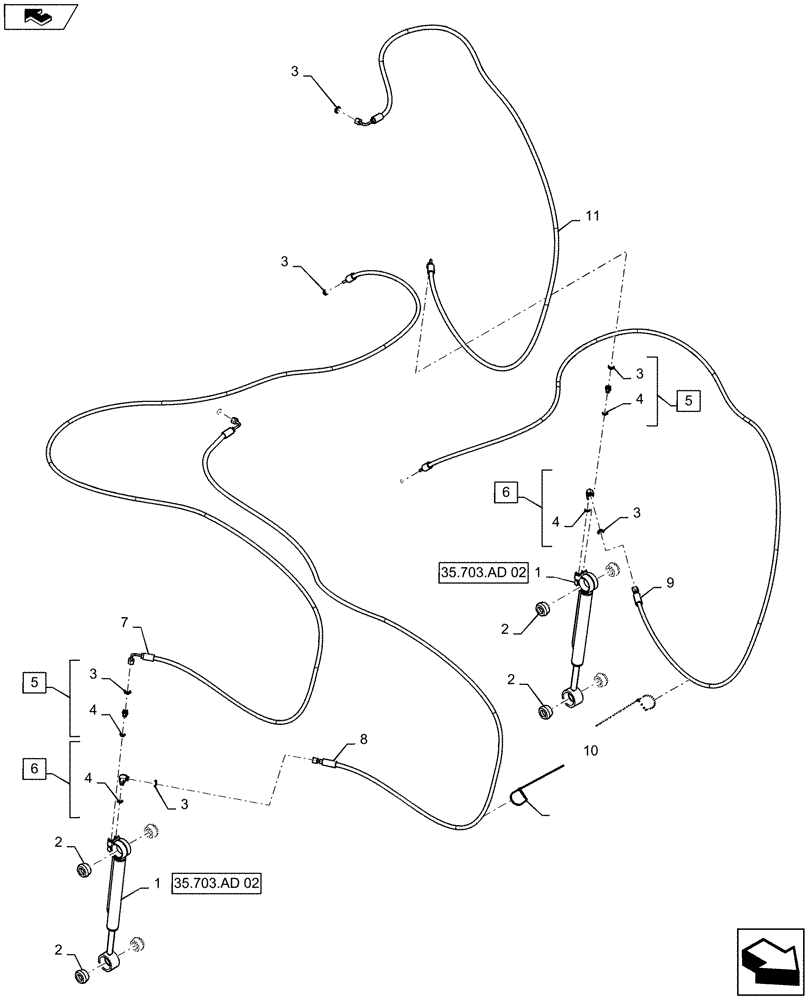

Схема запчастей Case IH 2240 - (35.703.AD[01]) - SUSPENSION, ACTIVE (35) - HYDRAULIC SYSTEMS
3
4
4
2
3
3
35.703.ad 02
2
9
6
8
2
5
3
4
5
2
home
1
6
3
7
4
3
11
10
35.703.ad 02
1

Артикул

Название

Примечание

Количество

1

84303124

HYDRAULIC CYLINDER,19.05mm Rod, 254mm Stroke

Complete

2шт.

See 35.703.AD 02 For Service Parts

1шт.

2

87269274

BUSHING,25.4mm ID x 48.01mm OD x 25.15mm L

Bushing

8шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

5

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 3, 4

2шт.

6

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, ZND Incl 3, 4

2шт.

7

84368881

HYDRAULIC HOSE

9/16 -18 Female ORFS Swivel Medium Elbow x 9/16 -18 Female ORFS Swivel Long Elbow, 1/4" ID, 189" Long, Cylinder To Steel Line T2

1шт.

8

84368886

HYDRAULIC HOSE

9/16 -18 Female ORFS Swivel Medium Elbow x 9/16 -18 Female ORFS Swivel Straight, 1/4" ID, 129 3/8" Long, Cylinder To Steel Line A2

1шт.

9

47430124

HYDRAULIC HOSE

9/16 -18 Female ORFS Swivel Medium Elbow x 9/16 -18 Female ORFS Swivel Straight, 1/4" ID, 151 1/2" Long, Cylinder To Steel Line T1

1шт.

10

BN570007

STRAP

14-1/2"

2шт.

11

47430123

HYDRAULIC HOSE

9/16 -18 Female ORFS Swivel Medium Elbow x 9/16 -18 Female ORFS Swivel Medium Elbow, 1/4" ID, 129 3/8" Long, Cylinder To Steel Line A1

1шт.

Выбрано товаров: 12
