Запчасти Case IH 2240 (35.310.AG[01]) - CASE DRAIN LINES (35) - HYDRAULIC SYSTEMS

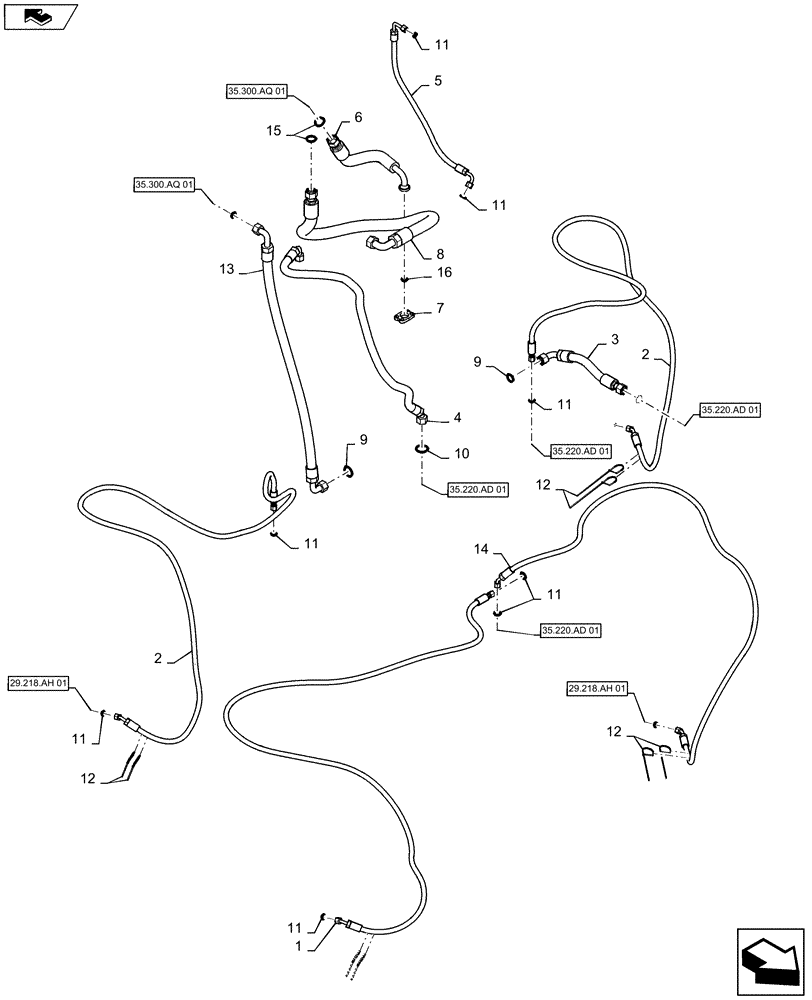

Схема запчастей Case IH 2240 - (35.310.AG[01]) - CASE DRAIN LINES (35) - HYDRAULIC SYSTEMS
12
13
5
9
11
11
15
16
12
35.220.ad 01
35.300.aq 01
35.220.ad 01
11
12
8
35.300.aq 01
11
29.218.ah 01
9
home
35.220.ad 01
1
2
2
11
11
3
35.220.ad 01
10
14
11
29.218.ah 01
6
4
7

№

Артикул

Название

Примечание

Количество

1

47587064

HOSE

13/16" -16 ORFS Swivel Short Straight x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 174", From Steel Lines To Front Right Wheel Motors

1шт.

2

84368109

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short Straight x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 153", From Cross Steel Line To Rear Wheel Motors

2шт.

3

84368110

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short Elbow, 1" ID x 18 1/2", From Cross Steel Line To Steel Line

1шт.

4

84557193

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Short 45 x 1-7/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 59", From Cross Steel Line To Hydro

1шт.

5

84368112

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Medium Elbow x 13/16" -16 ORFS Swivel Long Elbow, 1/2" ID x 42", From Hyd Reservoir To Pressure Comp Pump

1шт.

6

343888A1

HOSE

1-11/16" -12 ORFS Swivel Short Straight x 1 1/4" Code 61 Flange Short Elbow, 1 1/4" ID x 20", From Hyd Reservoir To Pressure Comp Pump

1шт.

7

BN316599

REPAIR KIT

For Ref 6

1шт.

Incl 2 Clamps, 70921117, 4 Bolts, 9637916, 4 Lock Washers, 92-11044, 1 O Ring, 235757

1шт.

8

84368531

HYDRAULIC HOSE

1-11/16" -12 ORFS Swivel Short Straight x 1-11/16" -12 ORFS Swivel Short 90 Elbow, 1 1/4" ID x 40", From Hyd Reservoir To Hydro

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

12

BN570007

STRAP

14"

8шт.

13

47414022

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Short Elbow x 1-7/16" -12 ORFS Swivel Short Elbow, 1" ID x 51", From Cross Steel Line To Reservoir

1шт.

14

47587063

HYDRAULIC HOSE

13/16" -16 ORFS Swivel Short 45 x 13/16" -16 ORFS Swivel Short 45, 1/2" ID x 134 1/2", From Steel Lines To Front Left Wheel Motors

1шт.

15

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

16

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.
