Запчасти Case IH 2240 (35.300.BN[01]) - HYDRAULIC OIL FILTER, IN TANK (35) - HYDRAULIC SYSTEMS

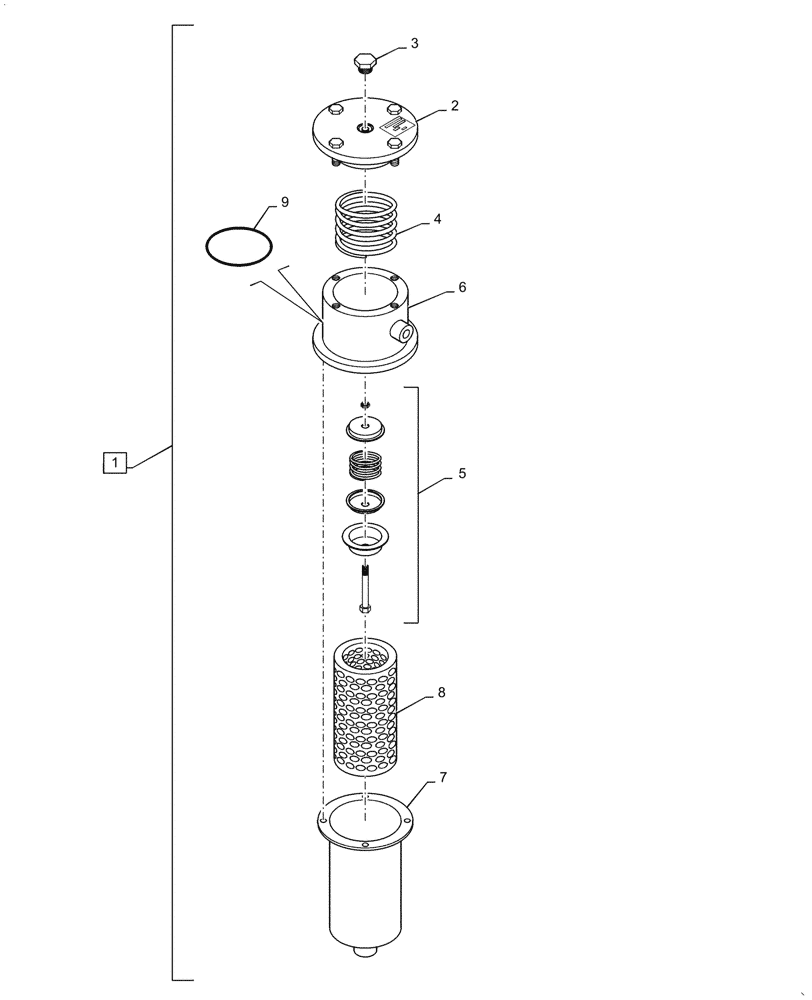

Схема запчастей Case IH 2240 - (35.300.BN[01]) - HYDRAULIC OIL FILTER, IN TANK (35) - HYDRAULIC SYSTEMS
5
9
2
4
7
3
8
1
6

Артикул

Название

Примечание

Количество

1

87267807

HYDRAULIC OIL FILTER

Assembly, Oil, In Tank, Incl 2 - 9

1шт.

2

87272027

CAP

Oil Filter with Fill Port,

1шт.

3

214389

PLUG,3/4" - 16 ORB

1шт.

4

87272028

SPRING

Compression

1шт.

5

87272029

FILTER ASSY

Bypass

1шт.

6

87272030

FILTER HEAD

Hydraulic Oil

1шт.

7

87272031

FILTER BOWL

Housing

1шт.

8

87272033

ELEMENT

Element

1шт.

9

87272032

SEAL KIT

Oil Filter

1шт.

Выбрано товаров: 9
