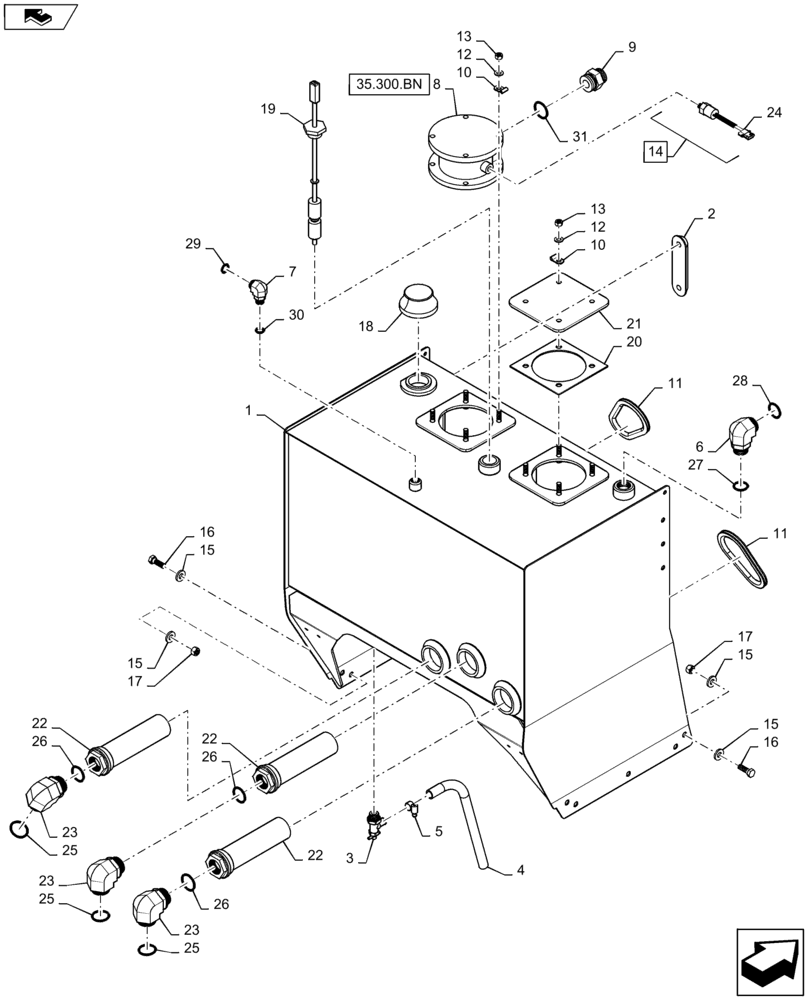

Запчасти Case IH 2240 (35.300.AQ[01]) - HYDRAULIC OIL TANK (35) - HYDRAULIC SYSTEMS

1

47600992

TANK

Hydraulic Oil

1шт.

2

BN322594

GAUGE

Sight With Temperature

1шт.

3

87105048

DRAINCOCK/TAP SUPPLY

Valve, Hydraulic

1шт.

4

129096A1

HOSE

Reservoir Drain

1шт.

5

87487836

CLAMP,0.56" - 1.06"

Reservoir Drain, #12, SST

1шт.

6

BN302574

ELBOW

1-7/16-12 ORFS x 1-5/16-12 ORB

1шт.

7

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

1шт.

8

87267807

HYDRAULIC OIL FILTER

Oil, In Tank, Complete

1шт.

See 35.300.BN For Service Parts Breakdown

1шт.

9

BN311052

FITTING

Connector,1-7/16-12 ORFS x 1-5/8-12 ORB

1шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

11

1977624C1

SEAL,0.19mm Grip, 373.38mm OAL

Trim Edge, 14-3/4" Long

2шт.

12

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2MM, DOR

8шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

14

87267808

PRESSURE SWITCH

Oil Tank, Includes Ref 24

1шт.

15

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

20шт.

16

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12 x 35, CL 8, DOR

10шт.

17

87695422

LOCK NUT

M12, CL10, DOR

10шт.

18

BN304339

VALVE

Pressure Valve, Breather

1шт.

19

BN323888

INDICATOR

Multi-Level And Temperature Oil Sender

1шт.

20

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

21

84267362

PLATE

Top Cover

1шт.

22

BN303528

STRAINER ASSY.

32MB X 20 FB, 100 Mesh

3шт.

23

BN302577

ELBOW

1-11/16-12 ORFS x 1-5/8-12 ORB

3шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Pin, WeatherPack

1шт.

25

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

3шт.

26

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

4шт.

27

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

3шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

2шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

1шт.
