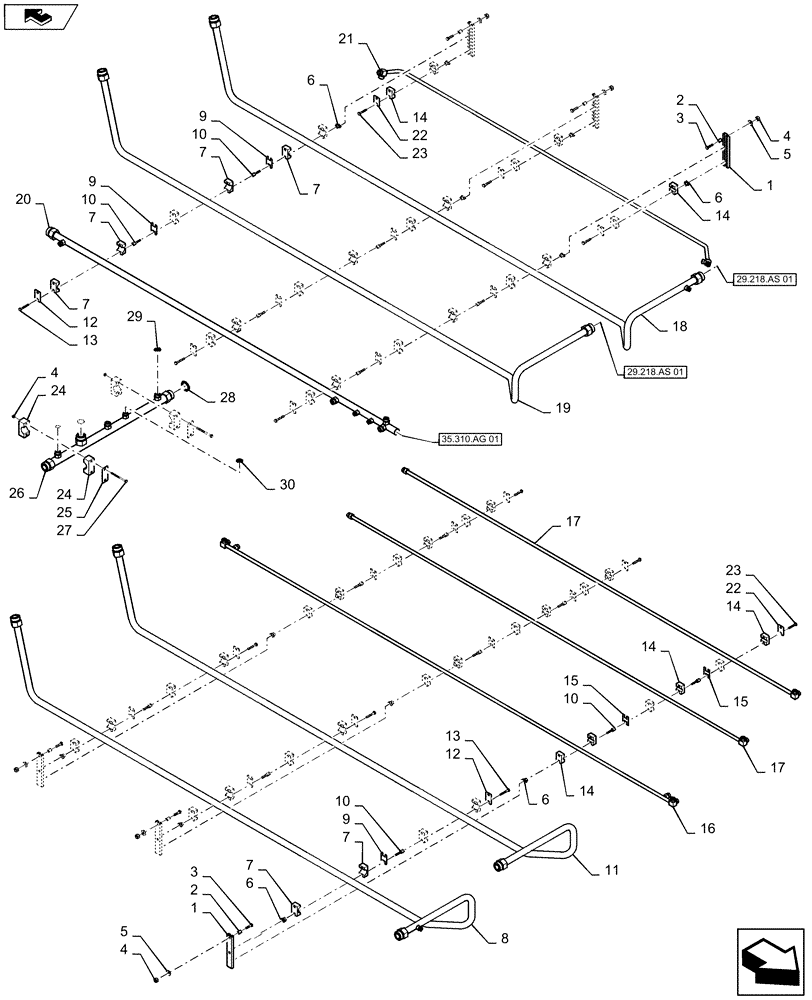

Запчасти Case IH 2240 (35.220.AD[01]) - STEEL HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

BN313247

RAIL

C-Rail

6шт.

2

BN316101

SPACER

C-Rail, Hydraulic Tube

6шт.

3

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

6шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

10шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

6

BN313262

NUT

C-Rail, 1/4 -20

24шт.

7

BN307080

CLAMP

Pair, Single Tube

15шт.

8

84350056

HYD TUBE

Drive Pressure, A

1шт.

9

BN313265

PLATE

Safety, Single Tube

9шт.

10

BN313261

BOLT

Stacking, 1/4"

30шт.

11

84350058

HYD TUBE

Drive Pressure, B

1шт.

12

BN307081

PLATE

Top Plate, Single Tube Clamp

6шт.

13

87342609

BOLT

1/4-20 x 1-3/4" DOR

12шт.

14

BN29783

CLAMP

Single,1/2 Tube

12шт.

15

BN313264

PLATE

Safety,1/2 Tube

6шт.

16

84350062

HYD TUBE

Park Brake

1шт.

17

84350064

PRESSURE PIPE

Servo Control

2шт.

18

84350066

HYD TUBE

Drive Pressure, A

1шт.

19

84350068

HYD TUBE

Drive Pressure, B

1шт.

20

84350060

DRAIN

Tube, Case Drain

1шт.

21

84350072

RIGID TUBE

Steering, Brake

1шт.

22

BN29785

PLATE

Cover Plate, Single,1/2 Tube

6шт.

23

87342608

BOLT

1/4-20 x 1-1/2", DOR

12шт.

24

BN307082

CLAMP

Pair,1.25" Tube

2шт.

25

BN309483

PLATE

Top Plate, Single

2шт.

26

84350074

RETURN PIPE

Cross Tube, Return Manifold

1шт.

27

86980369

BOLT,Hex, M6 x 80, Cl 8.8

4шт.

28

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
