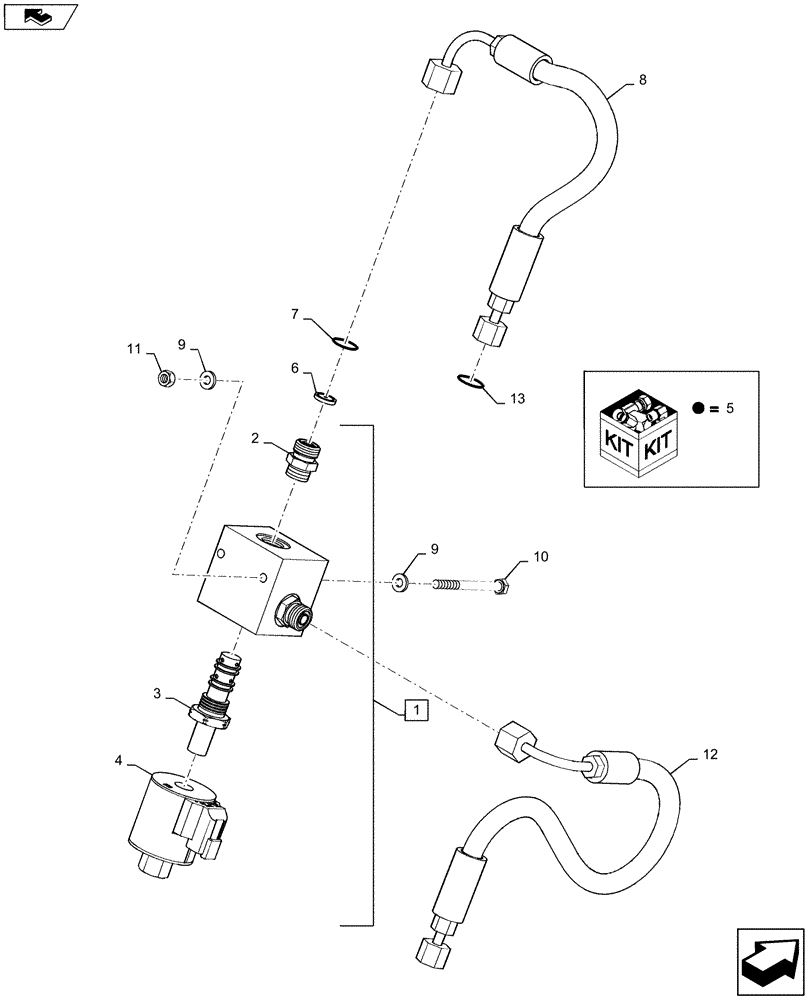

Запчасти Case IH 2240 (35.204.BE[01]) - TRACTION CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

47417551

CONTROL VALVE

Incl 2, 3, 4

1шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

3

47452098

SOLENOID VALVE

1шт.

4

47445349

COIL

12v

1шт.

5

47459046

SEAL KIT

For Ref 1

1шт.

6

87265840

ORIFICE

0.076, -6

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

8

47432817

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Short Straight, 1/4" ID x 13", From Left Hydro To Traction Control Valve

1шт.

9

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 DOR

4шт.

10

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

12

47432820

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Short Straight, 1/4" ID x 21", From Traction Control Valve To Right Hydro

1шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
