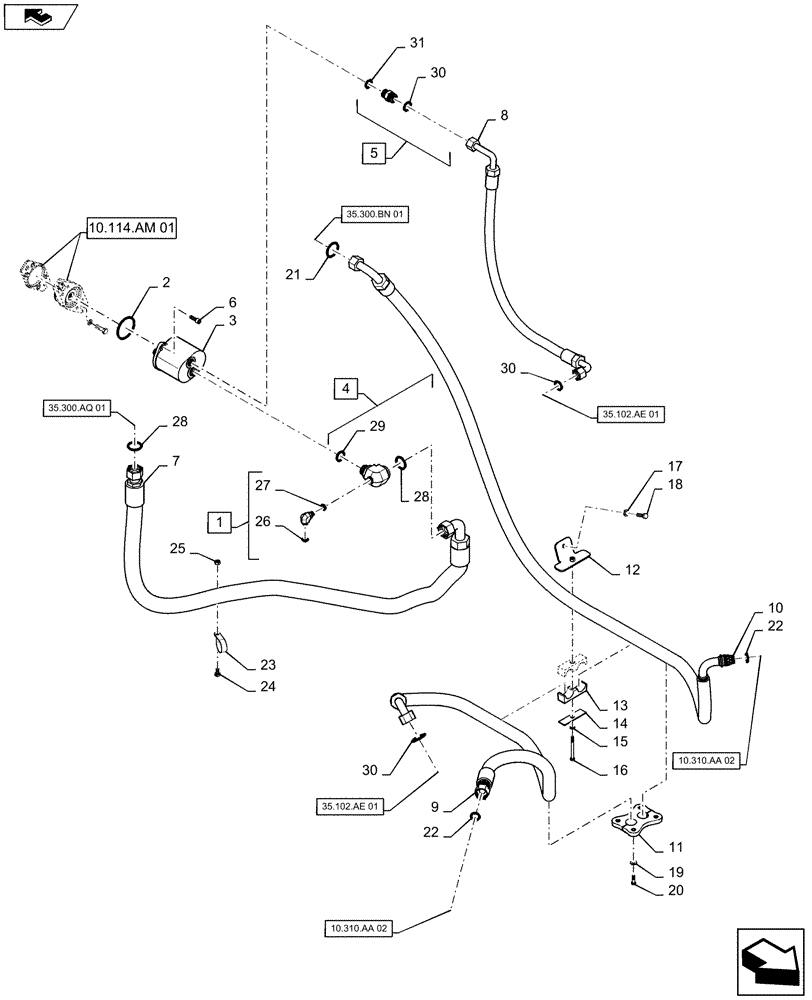

Запчасти Case IH 2240 (35.104.AF[01]) - GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB, Incl 26, 27

1шт.

2

172033

O-RING,2.989" ID x 3.129" OD x 0.07"

1шт.

3

84331283

HYDRAULIC PUMP

Gear

1шт.

4

BN313173

ADAPTER

Machined, 1-11/16" -12 ORFS x 1-5/16" -12 ORB x 9/16" -18 ORP, Incl 28, 29

1шт.

5

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 30, 31

1шт.

6

87343636

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 12.9, Full Thd

2шт.

7

47450573

HOSE

1 11/16" - 12 ORFS Swivel Short Elbow x 1 11/16" - 12 ORFS Short Straight x 1 1/4" ID x 76" Long, From Gear Pump To Hydraulic Tank

1шт.

8

84377144

HOSE

1 3/16" - 12 ORFS Swivel Long Elbow x 1 3/16" - 12 ORFS Short Elbow x 3/4" ID x 39" Long, From Gear Pump To Product Pump Valve

1шт.

9

84545973

HYDRAULIC HOSE

28mm Male Coupler x 1 3/16" - 12 ORFS Short Elbow x 1" ID x 74", From Oil Cooler To Product Pump Valve

1шт.

10

84545972

HYDRAULIC HOSE

28mm Male Coupler x 1 7/16" - 12 ORFS Short Elbow x 1" ID x 106", From Oil Cooler To Tank Filter

1шт.

11

84393404

MOUNT

Hose Support

1шт.

12

47588757

MOUNT

Hose Support

1шт.

13

BN67495

CLAMP

Dual, 1 1/2"

1шт.

14

BN309850

PLATE

Top

1шт.

15

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

16

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90, CL 8.8, DOR

1шт.

17

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Medium Elbow x 3/8" ID x 16" Long, Tee To Adjusting Valve

1шт.

18

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

19

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

22

84156021

O-RING,24mm ID x 2.0mm

2шт.

23

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

24

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, CL 8.8, DOR

1шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

29

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

31

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
