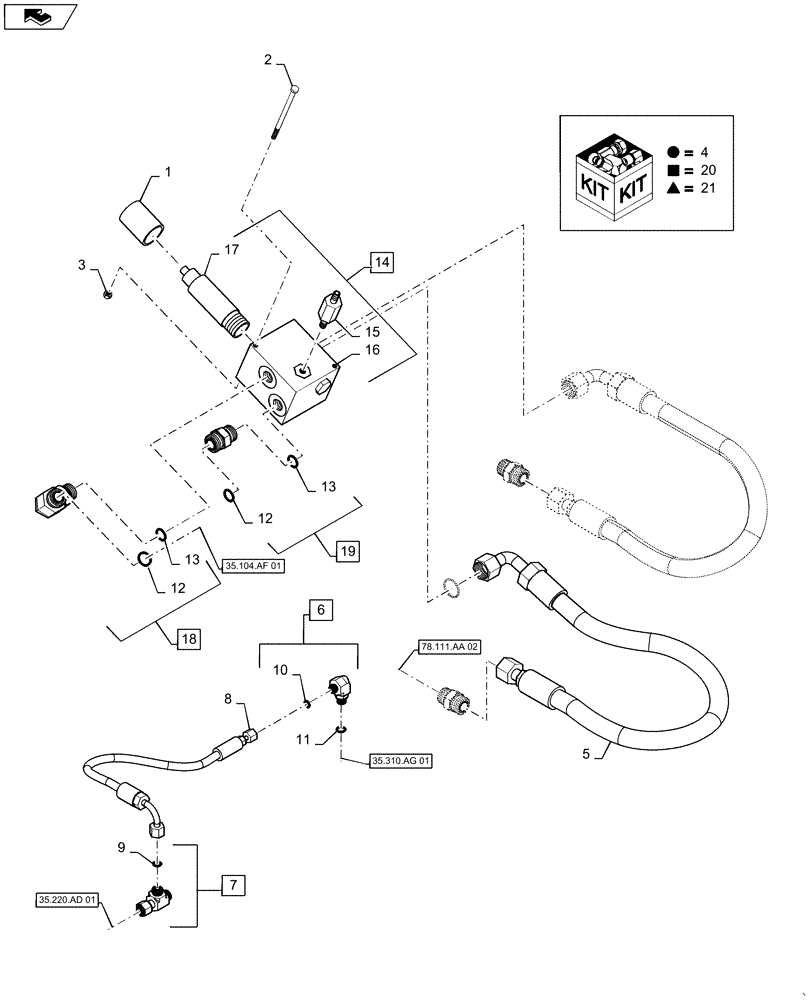

Запчасти Case IH 2240 (35.102.AE[01]) - PRODUCT PUMP CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

1

84423410

KIT

Control Valve Coil

1шт.

2

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

84401247

SEAL KIT

For Valve, Ref 17

1шт.

5

87389187

HOSE

1 3/16" - 12 ORFS Swivel Short Straight x 1 3/16" - 12 ORFS Swivel Short Elbow x 3/4" ID x 32" Long, Control Valve To Pump Motor

2шт.

6

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB, Incl 10, 11

1шт.

7

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel Incl 9

1шт.

8

BN309759

HOSE

-6 ORFS Swivel Medium Elbow x - 6 ORFS Swivel Straight x 1/4" ID x 22 1/2" Long, Steel Lines To Control Valve

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

14

84333717

VALVE

Complete With Fitttings Incl 15 Through 19

1шт.

15

84401227

VALVE POPPET

Relief Valve

1шт.

16

84401228

CHECK VALVE

Poppet

1шт.

17

84401225

FLOW CONTROL VALVE

Proportional, Cartride Only

1шт.

18

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 12, 13

1шт.

19

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 12, 13

5шт.

20

84401248

SEAL

For Relief Valve, Ref 15

1шт.

21

84401250

SEAL KIT

For Check Valve, Ref 16

1шт.
