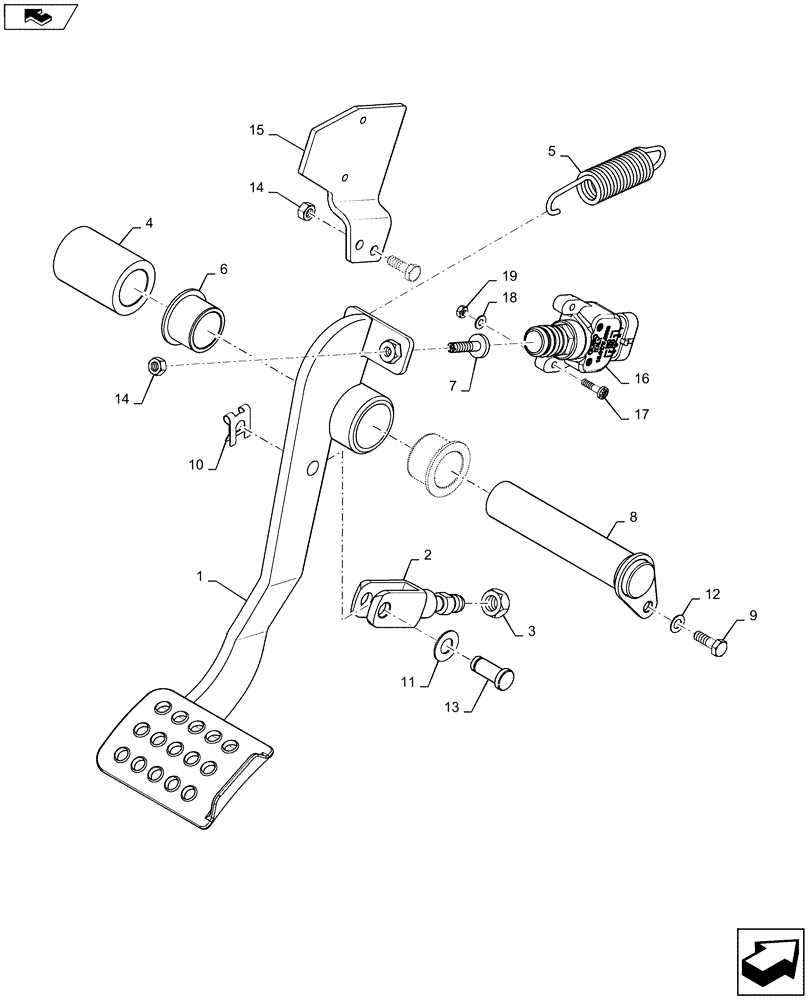

Запчасти Case IH 2240 (33.202.BN[01]) - FOOT BRAKE ASSY. (33) - BRAKES & CONTROLS

1

47408229

PEDAL

Brake

1шт.

2

84392750

BRAKE

Clevis, Incl 3, Inc Threaded Rod

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

84393203

BUSHING

Pivot

1шт.

5

81863741

SPRING

Return

1шт.

6

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

Pedal

2шт.

7

84280664

SCREW,M6 x 26mm L

Regulator

1шт.

8

84390435

ROD

Pivot

1шт.

9

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

3шт.

10

11064176

CLIP,M10 x 8mm

Retaining

1шт.

11

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.

12

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

13

5111590

PIN,10mm OD x 28mm L

Engagement

1шт.

14

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

15

47411641

BRACKET

Switch Mounting

1шт.

16

87484878

LIMIT SWITCH

Brake

1шт.

17

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

18

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

19

10794011

NUT,M4, Cl 8

2шт.
